Universal Clutch Alignment Tool Set
Model
KA-8413
Specification:
- Align the clutch disc either relative to the clutch pressure plate or via the pilot bearing relative to the flywheel.
- For single / two-disc clutches. (clutch hub Ø15~26mm).
- For passenger cars and light commercial vehicles.
- For vehicles with / without pilot bearings.

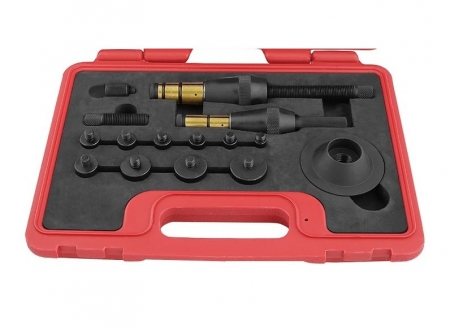

Content:
| No. | Description |
|---|---|
| 1 | Mandrel: Ø15~19mm |
| 2 | Spindle, Length:100mm |
| 3 | Clutch disc aligning adaptor: Ø19~30mm |
| 4 | Mandrel: Ø20~26mm |
| 5 | Spindle: Length: 150mm |
| 6 | Clutch disc aligning adaptor: Ø26~35mm |
| 7 | Clutch plate aligning adaptor: Ø29~69mm |
| 8 | Pilot bearing extension adaptor, length:20mm |
| 9 | Spindle, Length: 55mm |
| 10 | Pilot bearing adaptor: Ø10, 12, 14, 15, 16, 17, 19, 25, 27, 30mm |
.jpg) |
.jpg) |

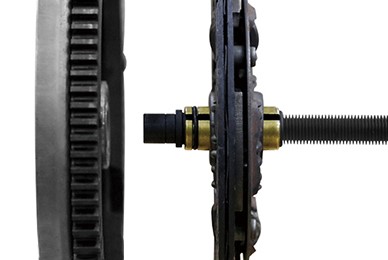

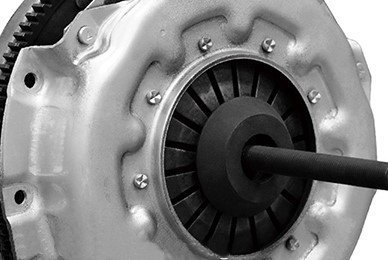

| Clutch with pilot bearing | Clutch without pilot bearing |
