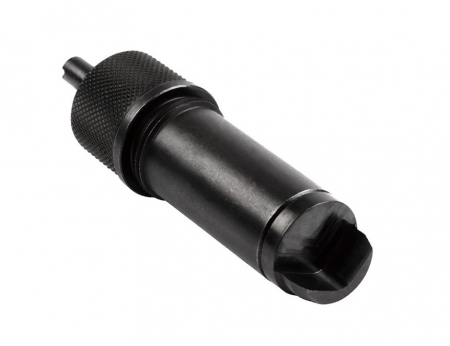

Tool For Positioning Electronic Clutch (Fiat C510 Dualogic)
Model
KA-5472
Specification:
- To lock the selection lever inside the actuation hydraulic unit.
- The tool should be fully tightened and should not be removed to allow the hydraulic unit to be correctly fitted.
- Suitable for 1.3 MultiJet robotized gearbox (EURO 5).
- OEM Ref. 1871003400.
.jpg) |

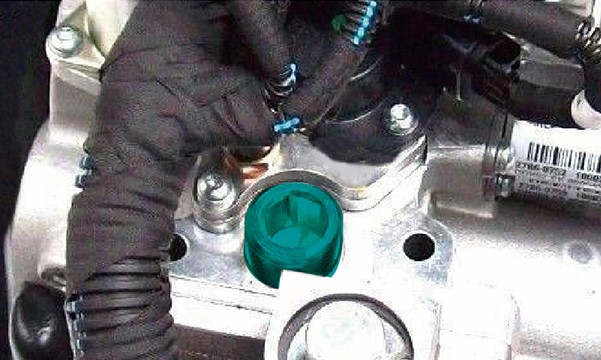

| Undo the protection plug for the hydraulic unit selection lever locking tool. |
.jpg) |

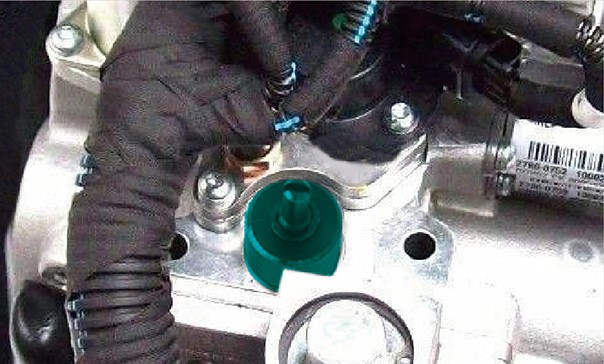

| Install the tool to lock the selection lever inside the actuation hydraulic unit. |
