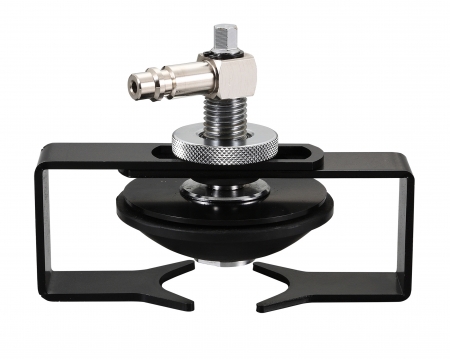

Universal Brake Refilling Adapter

KA-7847
KA-7847

Model

KA-7847 / KA-7847A

Specification:

  • Brake refilling adapter with a 90° rotating coupling fits almost all vehicles on the market.
  • Fits master cylinder fill neck between Ø28-70mm (1.10”-2.75”).
  • Brake fluid resistant EPDM rubber.
  • Patented
  • KA-7847 Maximum pressure up to 2.0 bar (29 psi)
  • KA-7847A Maximum pressure up to 3.5 bar (50 psi).


Operation:
  1. Unscrew the width adjusting nut to adjust the opening of the wings. (Fig 1)
  2. Adjust the height adjusting screw in order to fit the master cylinder filler neck.
  3. Make sure the adapter is securely connected on the master cylinder filler neck before connecting the adapter to brake service machines. (Fig 2).
