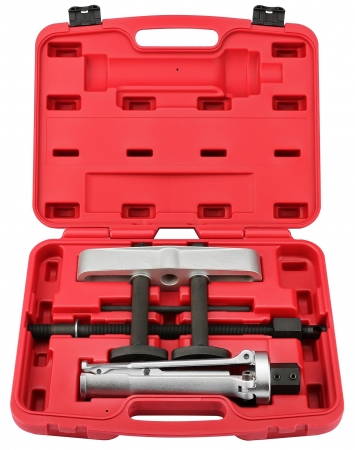

Cylinder Liner Puller With Support

Universal Engine Repair Tool
KA-4518
KA-4518
KA-4518(demo)

Model

KA-4518

Specification:

  • For removing wet cylinder liners from engines used on passenger cars and trucks (Mercedes, MAN).
  • Suitable for cylinder liner Ø60~160mm.
Operation:
  1. Screw the spindle of the support into the clamping nut of the puller.
  2. Insert the puller into the liner.
  3. Place the support on the cylinder block.
  4. Tighten the nut of the support.

* Thanks to the newly developed spreading system, turning the spindle will enable all three jaws to spread quickly and without any trouble until they are firmly seated beneath the edge of the liner.
