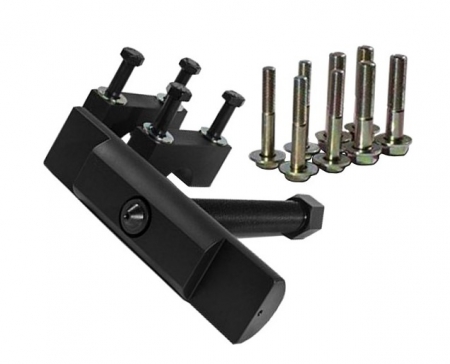

Heavy Duty Yoke Puller

Ball Joint
KA-5459HD
KA-5459HD

Model

KA-5459HD

Specification:

  • Simplifies and expedites the removal of heavy-duty yokes on drive shafts, transmissions and rear-end differentials without damage to yokes or other components.
  • Manufactured from high-grade steel for strength and durability
  • Engineered for use with a 1” impact tool.
  • Capable of generating over 25,000 lbs of pulling power.
  • To prolong the life of the forcing screw, the pull bar is precisely milled with a chamfer. The caps are designed with flexibility in mind to service an extensive range of class 6-8 trucks.
Application:
Yokes with a bearing diameter between 1 7/8” and 2 3/16”
Spicer and Meritor 1610, 1710, 1760, 1810 Series
Meritor/Rockwell RPL 20, 25 Series
