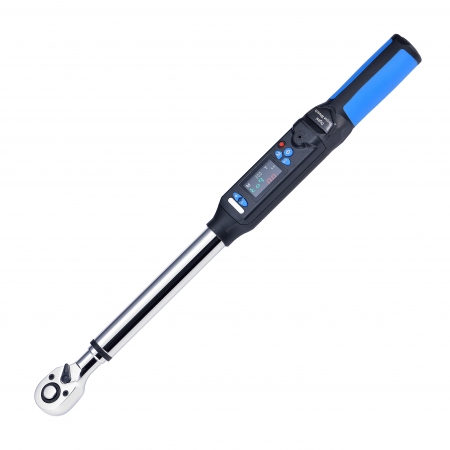

Digital Torque Wrench with Angle Function

Hand Tools
KA-1600-21A
KA-1600-21A
KA-1600-21A(示意圖)

Model

KA-1600-83 / KA-1600-21A / KA-1600-21B

Specification:

  • No more "flash" display of "torque then angle".

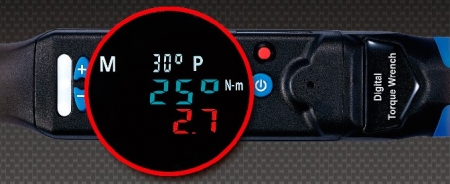

  • “Simultaneous” display of torque and angle.

Description

  • Torque and Angle provide the most accurate and fast way to achieve torque plus angle.
  • The angle reading measured can be accumulated when used in limited space.
  • It can measure angle directly, do not need mechanical angle gauge.
KA-1600-21A(示意圖)


KA-1600-83

KA-1600-21A

KA-1600-21B

Dr. / Teeth

3/8” / 72T

1/2” / 36T

1/2” / 36T

Torque Range

27-135Nm (19.9-99.6lb-ft)

40-200Nm

(29.5-147.6lb-ft)

68-340Nm (50.1-250.9lb-ft)

Length

465mm

530mm

650mm

Weight

1.4kgs

1.5kgs

1.6kgs


Specification:

Torque Accuracy

C.W: 2% / C.C.W: 2.5%

Angle Accuracy

(+/-1% of reading) + (+/- 1% angular velocity>10%<180%)

Angle Range

0-360°

Torque / Angle Reading Display

Simultaneous/Flashing

Torque Range

27-135Nm (19.9-99.6lb-ft)

Resolution

0.1Nm (0.1lb-ft)

Length

465mm

Weight

1.4kgs

Backlight

Yes (negative)

Resolution

0.1Nm (0.1lb-ft)

Torque Preset

10

Angle Preset

1

Memory(Torque Reading) / Angle

100(10 memory for each preset) / 50

Unit

Nm. Lb-ft. In-ft. Kg-m

Mode

Trace / Peak

Alert

L.E.D & Buzzer

Battery

3pcs * AAA

Auto shout off

60 seconds

Operating Ambient Temperature

-10℃-60℃ (-2℉-139.9℉)

Storage Temperature

-20℃-70℃ (-4℉-57.9℉)

Operating Relative Humidity

15-90% noncondensing
