Multi-Function Automobile Test

KA-1070
KA-1070
KA-1070
KA-1070(1)

Model

KA-1070

Specification:

  • Supply voltage: 8-30 VDC.
  • Voltage measurement range: 0-70V.
  • DC current measurement range: 0-5A DC.
  • Frequency measurement range: 0-300 KHZ (squre wave)
  • Resistance measurement range: 0-200 KΩ
  • Temperature measurement: 5-200℃ / 41-392℉.
  • Illumination
  • Color LCD display
  • Cable Length: 2M

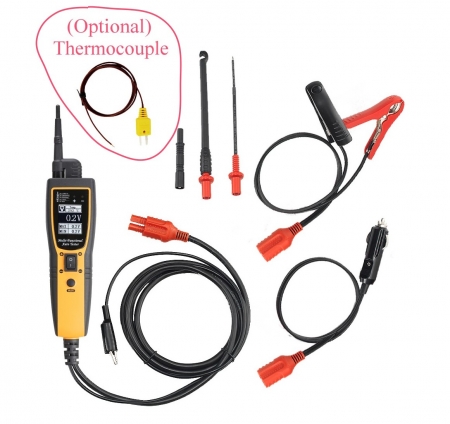

  • Optional: KA-1070-TP Thermocouple / 6M extension wire.

Description

  • The multi-function automobile tester has LCD display to indicate the measured result.
  • It has polarity detection with the LEDs for a positive and negative indication of DC voltage.
  • For auto use, the functions included the measurement of DC voltage and current, signal frequency and max/min voltage, resistance, temperature and power providing testing.
KA-1070 新 (2)KA-1070 新 (3)

Features:

  • Signal Frequency and Max / Min Voltage Measurement
  • Illumination
  • DC Voltage Measurement
  • Resistance Measurement
  • Current Measurement
  • Power Providing Test
  • (Optional Accessory) KA-1070-TP Thermocouple and for temperature measurement.
