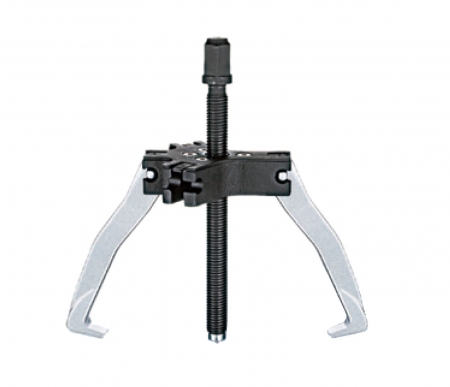

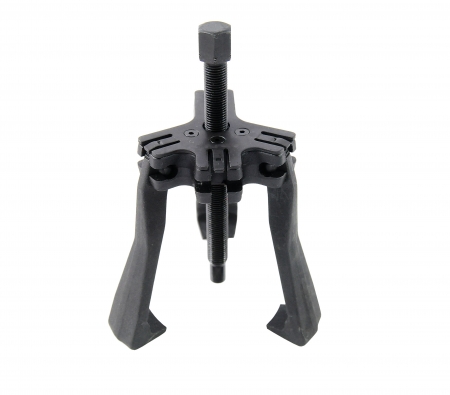

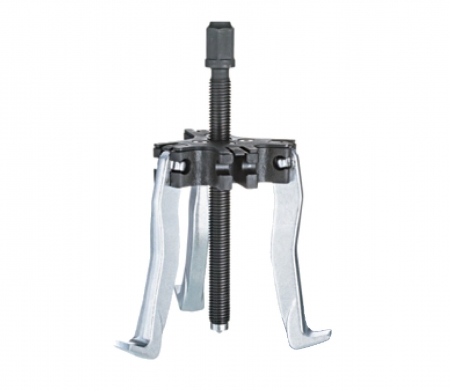

2 & 3 Jaw Gear Puller - Thin Type

Puller, Bearing Tool
KA-4516AT
KA-4516AT
KA-4516B(示意圖5)
KA-4516B(示意圖7)
KA-4516B(示意圖6)

Model

KA-4516AT , KA-4516BT

Specification:

  • Unique design patented for widely industrial using.
  • Changeable jaws for 2 & 3 operation.

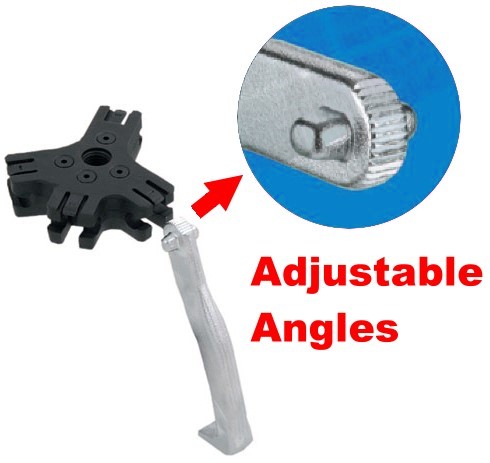

  • Adjustable angle fixed jaws for easily working.
  • Patent: U.S.A, China, Japan, Taiwan, Germany.
Item No. Max. ton Range Max. Spread Jaw Length Jaw Width
KA-4516AT 2 tons 2” ~ 4” 80mm 90mm Thin Type
KA-451BT 5 tons 4” ~ 5” 140mm 133mm Thin Type
