Parking Sensor & Reversing Record Lens Hole Cutter Set

Universal Chassis Repair Tool
KA-5454
KA-5454

Model

KA-5454

Description

  • KA-5454 is a designed to let you re-fit the parking sensor & reversing record lens hole after accident damage.
  • KA-5454 is a outstanding tool set that enable you to cut the hole fast and cleanly.
  • Cut hole thickness up to 5mm plastics.
KA-5454(示意圖 1)

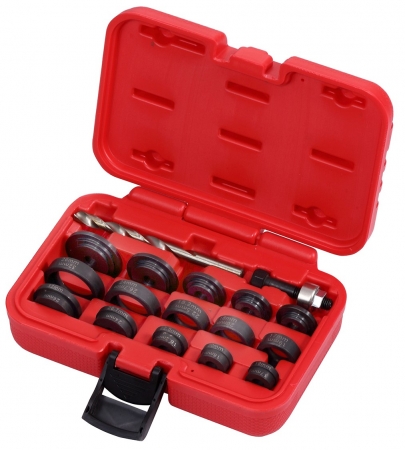

Contents:
  • Hole size: 17mm, 18mm, 18.2mm, 19mm, 20mm, 22.5mm, 24mm, 26mm, 26.7mm, 32mm
  • Including 5/16” HSS Drill Bit.


Procedure:
  1. Drill the plot hole in the new panel.

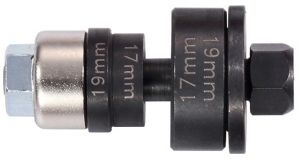

  2. Select the correct die and cutter punch from KA-5454.

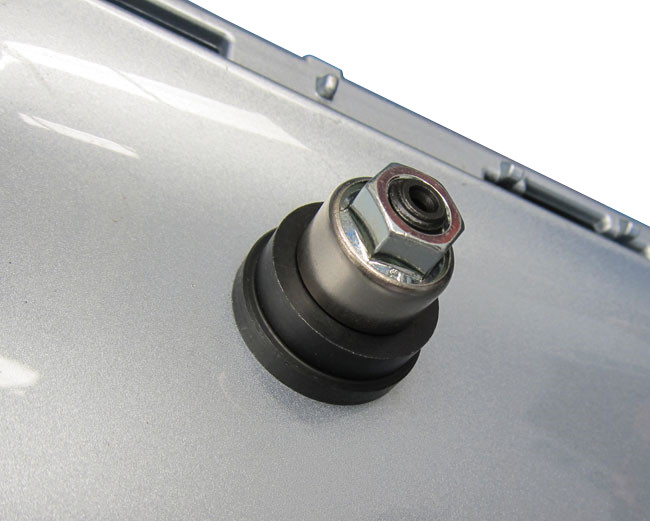

  3. Put the die behind the panel whilst put the cutter punch on the outer face of panel.
  4. Tighten the nut of the screw with socket (12mm)
