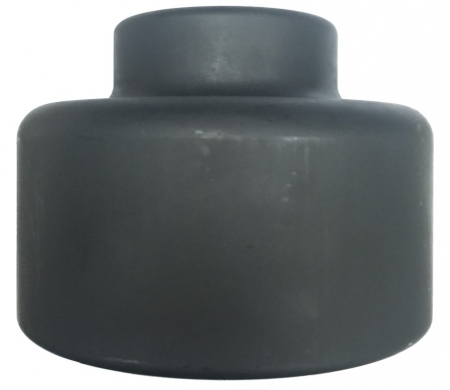

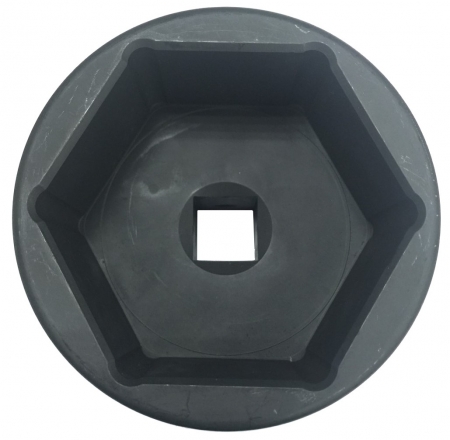

Impact Socket
Model
KA-5417 / KA-5418 / KA-5419
Specification:
- Size: 3/4”Dr. x 70mm x 6 points.
- With 3/4” Sq drive.
| Item No. |  mm |
Outer Ø mm | H mm |  |
Application |
|---|---|---|---|---|---|
| KA-5417 | 70 | 98.3 | 70 | 3/4” | Volvo, Ecrou BPW, BPW nut, Hino 17 tons |
| KA-5418 | 75 | 98.3 | 70 | 3/4” | VOLVO SAE GIGANT ECROU, VOLVO FL7 back wheel, SAE, FUSO 17 tons Korea DAEWOO (FX117) front wheel. |
| KA-5419 | 90 | 116 | 70 | 34/” | IVECO EUROCARGO, VOLVO DAF (CF85) 26 tons front wheel nut |
