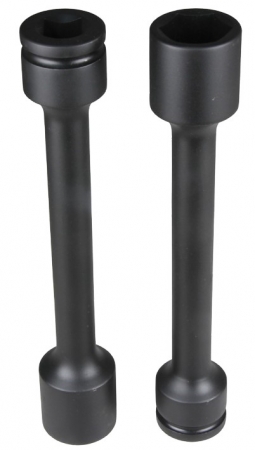

3/4”Dr. Extra Long Impact Socket For Wheel Nuts

Truck Tool
KA-2185A
KA-2185A

Model

KA-2185A ~ KA-2185R

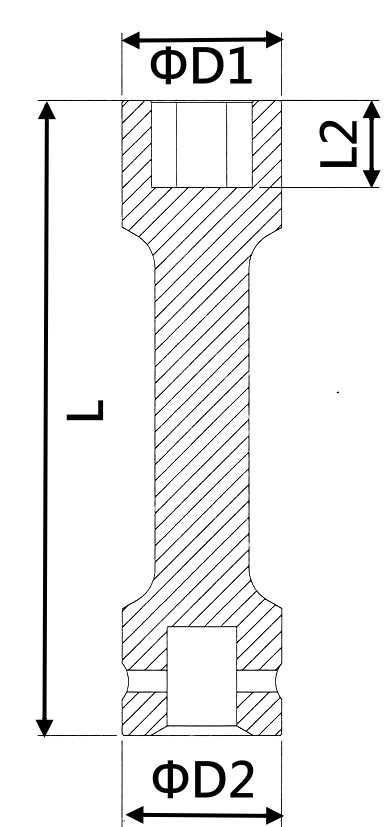

Specification:

  • Material: SCM440

Item No. D2
mm
D1
mm
L2
mm
L
mm
 mm Nm
KA-2185A 44 43 40 230 13/16” --
KA-2185B 44 42 40 230 1-1/16” --
KA-2185C 44 43 40 230 1-1/8” --
KA-2185D 44 47 40 230 1-1/4” --
KA-2185E 44 54 40 230 1-1/2” --
KA-2185F 44 48 40 230 33 --
KA-2185G 44 38.5 24 270 24 --
KA-2185H 44 42 27 270 27 --
KA-2185I 44 45 30 270 30 --
KA-2185J 44 47 32 270 32 --
KA-2185K 44 48 32 270 33 --
KA-2185L 44 53.5 32 270 36 --
KA-2185M 44 38.5 24 400 24 400
KA-2185N 44 42 27 400 27 500
KA-2185O 44 45 30 400 30 550
KA-2185P 44 47 32 400 32 650
KA-2185Q 44 48 32 400 33 650
KA-2185R 44 53.5 32 400 36 650
