Soldering Iron Kit

Butane Power Tools
KA-PRO150KB
KA-PRO150KB

Model

KA-PRO150KB

Description

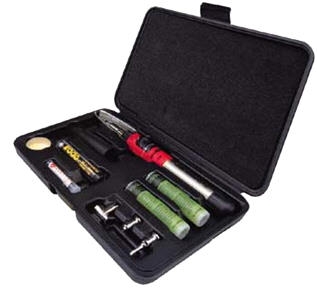

  • (contents: KA-PRO150, Solder, Sponge, PS-14, S-30, PS-10, PS-4, LEC (liquid energy cell))
  • Power range: 30W ~ 125W
  • Automatic igniting
  • Portable model, multi-function heat tool
  • Butane powered with removable refillable LEC (liquid energy cell)
Features:
  • Equivalent to a power range 30-125watt.
  • Cordless, simple, safe operation anywhere.
  • Ready to use 15 seconds after ignition.
  • Patented LEC removable fuel cell for uninterrupted use, safety & reliability even at very low temperatures. LEC refills easily with any brand of butane fuel. LEC filters butane for no-clog operation.
  • Disposable LECs available. Integrated stand for safety and hands free use.
  • May be legally transported on commercial airlines (without LEC)
  • No electrical interference.
  • Comes with soldering tip and protective cap.

Specifications:
Length: w/cap 254mm (10”)
w/soldering tip 245mm (9.7”)
Weight(when gas-filled) 240g
Approximate temperature
soldering tip
250~550℃
(480~1000℉)
Torch 1300℃ (2400℉)
Gas container capacity 20 ml
Operating Time
(one gas filling)
30 min
At mid setting


Applications:
Automotive and truck repairs, Aviation service and repair, Electrical components, Environmental splicing, Field repairs, Insulated solder preform, Jewelry repair, Loosen rusted nuts and bolts, Maintain switch panels, Repair television sets, meters, switch boards, sensitive IC boards, shrink tubing, silver solder, soften window caulking, Solder circuit boards, TV cable systems, Weld plastics.


Option accessories: the accessories listed below are available
Parts NO. Description Type   Parts NO. Description Type

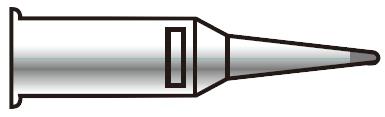

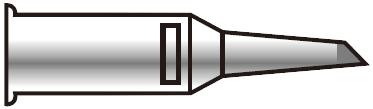

PS-1 1.6mm soldering tip Conical   PS-6 3.2mm Soldering tip Angle

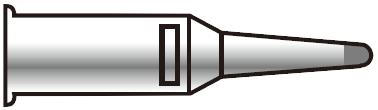

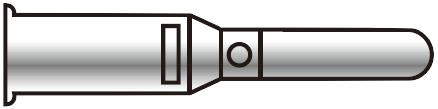

PS-2 3.2mm soldering tip Conical   PS-9 Hot Knife --

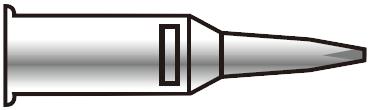

PS-3 2.4mm soldering tip Chisel   PS-10 Heat Blower
* KA-PRO150K includes
--

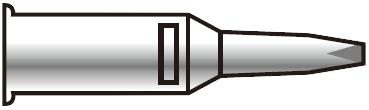

PS-4 3.2mm soldering tip
* KA-PRO150K includes
Chisel   PS-14 Orifice Assembly
* KA-PRO150K includes
--

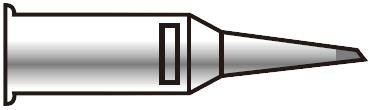

PS-5 2.4mm soldering tip Angle   S-30 Defleclor
* KA-PRO150K includes
--


How to changing tips:
  1. Be sure the tip has cooled before removal.
  2. The catalyst seen through the hot air exhaust hole of the soldering tip is very delicate and will not sustain mechanical abuse without serious damage.
  3. The soldering tip is easily removable allowing the installation of other style tips or the replacement of a worn tip. After the soldering tip is cool, simply unscrew it with a counterclockwise motion. Be careful not to over-tighten as this could damage the nozzle assembly and thread in the body.
