Features:

• Equivalent to a power range 30-125watt.
• Cordless, simple, safe operation anywhere.
• Ready to use 15 seconds after ignition.
• Tank contains fuel for 120 minutes of operation.
• No cords, can be used anywhere.
• No electrical interference.

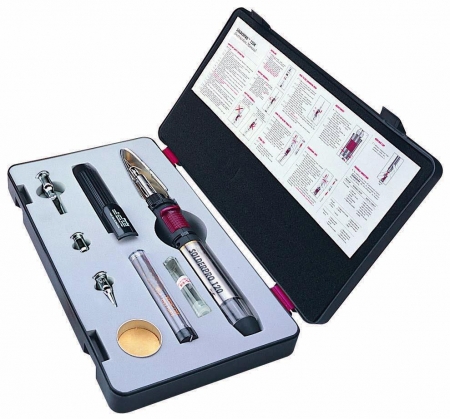

• Comes with soldering tip and protective cap.


Specifications:

Length:	w/cap	254mm (10”)
	w/soldering tip	245mm (9.7”)
Weight(when gas-filled)		166g
Approximate temperature soldering tip		250~550℃ (480~1000℉)
Torch		1300℃ (2400℉)
Gas container capacity		12 ml
Operating Time (one gas filling)		100 min At mid setting



Applications:
Automotive and truck repairs, Aviation service and repair, Electrical components, Environmental splicing, Field repairs, Insulated solder preform, Jewelry repair, Loosen rusted nuts and bolts, Maintain switch panels, Repair television sets, meters, switch boards, sensitive IC boards, shrink tubing, silver solder, soften window caulking, Solder circuit boards, TV cable systems, Weld plastics.

Option accessories: the accessories listed below are available

Parts NO.		Description	Type		Parts NO.		Description	Type
	PS-1	1.6mm soldering tip	Conical			PS-6	3.2mm Soldering tip	Angle
	PS-2	3.2mm soldering tip	Conical			PS-9	Hot Knife * KA-PRO120K includes	--
	PS-3	2.4mm soldering tip * KA-PRO120K includes	Chisel			PS-10	Heat Blower * KA-PRO120K includes	--
	PS-4	3.2mm soldering tip	Chisel			PS-14	Orifice Assembly * KA-PRO120K includes	--
	PS-5	2.4mm soldering tip	Angle			S-30	Defleclor	--



How to changing tips:

1. Be sure the tip has cooled before removal.
2. The catalyst seen through the hot air exhaust hole of the soldering tip is very delicate and will not sustain mechanical abuse without serious damage.
3. The soldering tip is easily removable allowing the installation of other style tips or the replacement of a worn tip. After the soldering tip is cool, simply unscrew it with a counterclockwise motion. Be careful not to over-tighten as this could damage the nozzle assembly and thread in the body.
