Mini Digital Protractor

Universal
KA-4507
KA-4507

Model

KA-4507

Specification:

  • Dimension: 50.8mm x 50.8mm x 31.0mm
  • Range: 360° (90° x 4)
  • Accuracy: ±0.1° (10~40℃), ±0.2° (0~10℃, 40~50℃)
  • Resolution: 0.1°
  • Operating Temp.: 0℃ ~ 50℃
  • Storage Temp.: -10℃ ~ 60℃ (14℉ ~ 140℉)
  • Battery: 3V CR2032 x 3
  • Weight: 130g

Description

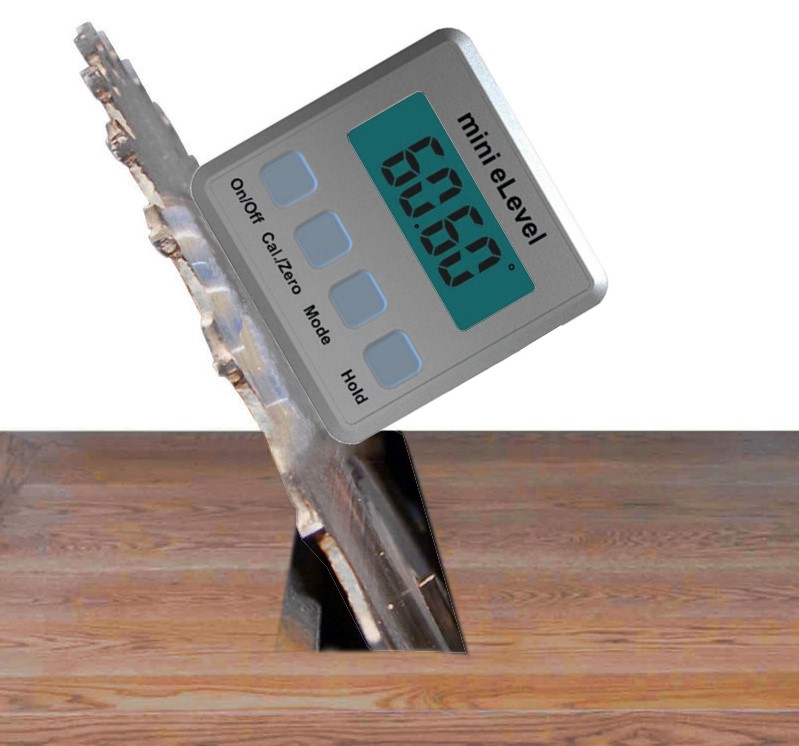

  • This is a measuring tool that provides an immediate, digital reading of all angles in a 360° cicle. It is easy to be carried and used for its small size and light weight. Measuring plane containing magnet material can stick to the surface to be measured. It is especially easy to measure bevel angle of miter saw, and any small area surface.
  • When mount  on a rigid platform, this measuring tool allows the sensor and its microprocessor circuit to provide excellent accuracy throughout the lnclinometer’s 360° ragne.
  • Small and protable
  • Faster and more precise measurement of gradient
  • Freezing readout on LCD display
  • Level readout in different ways: ( °, %, IN/FT)
  • Easy to calibration without extra tools
  • Magnetic base allows for hand free operation
  • Automatic shutdown for power saving, low battery warning
