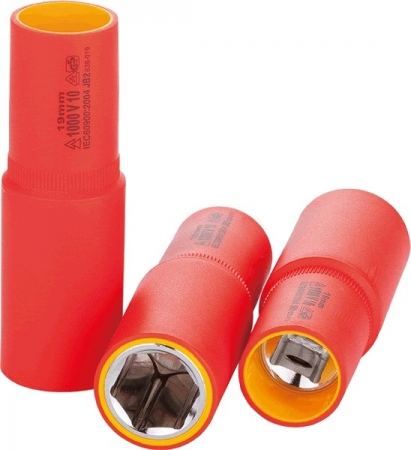

1/2” Dr. Insulated Socket
Model
2.21.010 ~ 2.21.024
Specification:
- Double injection plastic PP + TPR insulation provide maximum adherence and safety.
| Art. No | Size (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L2 (mm) | Weight (g) |
|---|---|---|---|---|---|---|
| 2.21.010 | 10 | 19.2 | 26.7 | 94 | 41 | 89 |
| 2.21.012 | 12 | 21.8 | 26.7 | 94 | 41 | 100 |
| 2.21.013 | 13 | 23.0 | 26.7 | 94 | 41 | 108 |
| 2.21.014 | 14 | 24.2 | 26.7 | 94 | 41 | 112 |
| 2.21.017 | 17 | 27.7 | 26.7 | 94 | 41 | 128 |
| 2.21.019 | 19 | 30.3 | 26.7 | 94 | 41 | 145 |
| 2.21.022 | 22 | 34.4 | 26.7 | 94 | 41 | 173 |
| 2.21.024 | 24 | 36.8 | 26.7 | 94 | 41 | 192 |
