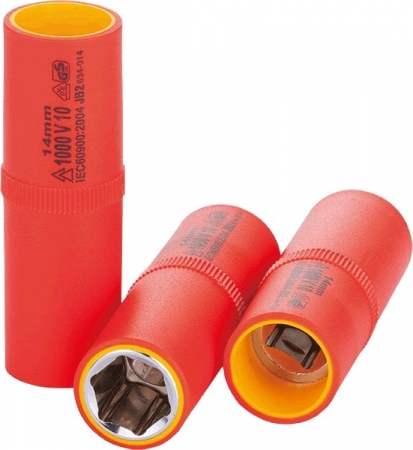

3/8” Dr. Insulated Socket

2.83.007
2.83.007

Model

2.83.007 ~ 2.83.014S

Specification:

  • Double injection plastic PP + TPR insulation provide maximum adherence and safety.
ADD INQUIRY


Art. No Size (mm) D1 (mm) D2 (mm) L1 (mm) L2 (mm) Weight (g)
2.83.007 7 15.3 22.8 71.8 35 38
2.83.008 8 16.8 22.8 71.8 35 40
2.83.010 10 18.5 22.8 71.8 35 48
2.83.012 12 21.1 22.8 71.8 35 52
2.83.014 14 22.7 22.8 71.8 35 69
2.83.015 15 27 22.8 71.8 35 93
2.83.017 17 28.5 22.8 71.8 35 96
2.83.019 19 30 22.8 71.8 35 102
2.83.022 22 34.5 22.8 71.8 35 122
2.83.006S 1/4” 15.3 22.8 71.8 35 38
2.83.008S 5/16” 16.8 22.8 71.8 35 40
2.83.010S 3/8” 18.5 22.8 71.8 35 48
2.83.012S 1/2” 21.1 22.8 71.8 35 52
2.83.014S 9/16” 22.7 22.8 71.8 35 69
