Model

KA-4197A

Specification:

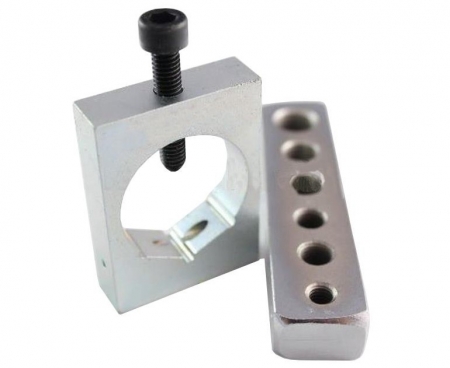

• Nut Drill Jig allows the safety wire holes to be drilled through the head of bolts or through nuts, across the diagonal easily. It will accept up to a 3.5mm diameter.
• Kit contains one nut drill jig, one metric bolt drill jig.
• Metric Bolt Drill Jig provides 6 drill holes for metric sizes: 6 x 1.0, 8 x 1.0, 8 x 1.25, 10 x 1.25, 10 x 1.5, 12 x 1.5 bolts.
