10pc Flywheel Drive Puller Set
Model
KA-7669
Specification:
- Application: YAMAHA, CAGIVA, MOTOPLATT, SUZUKI, SFERA, KAWASAKI, HONDA, KYMCO, PEUGEOT, BOSCH, MBK, KOKUSAN, DUCAN, PEUGEOT, MINARELLI, GLERA, KIMOO, DUCATI, SAM

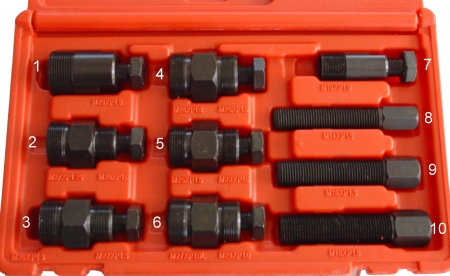

| Contents | Size: |
|---|---|
| KA-7669-1 | M28 x P1.5 |
| KM-7669-2 | M27 x P1.25 M20 x P1.0 |
| KS-7669-3 | M26 x P1.5 M22 x P1.5 |
| KA-7669-4 | M28 x P1.0 M26 x P1.0 |
| KA-7669-5 | M25 x P1.5 M22 x P1.0 |
| KA-7669-6 | M27 x P1.0L M24 x P1.0 |
| KA-7669-7 | M19 x P1.0 |
| KA-7669-8 | M14 x P1.5 |
| KA-7669-9 | M16 x P1.5 |
| KA-7669-10 | M18 x P1.5 |
.jpg)

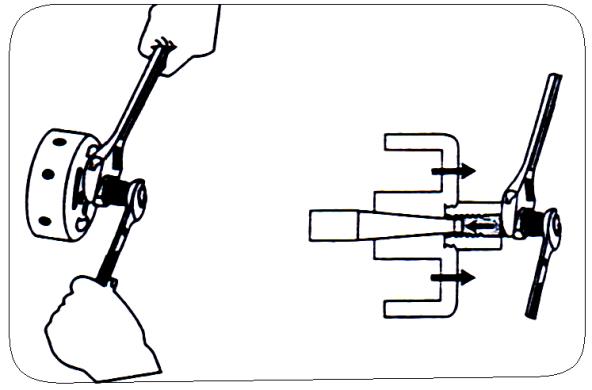

Notice: The plier connector should be fixed with the 19mm wrench.
And take out the Flywheel after the plier rotary shaft is inserted into the plier connector.
