Ratchet Extension Drive Bar (1/4” ~ 3/8”)

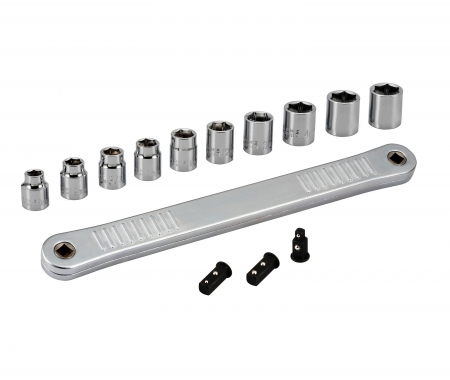

KA-5200AK
KA-5200AK

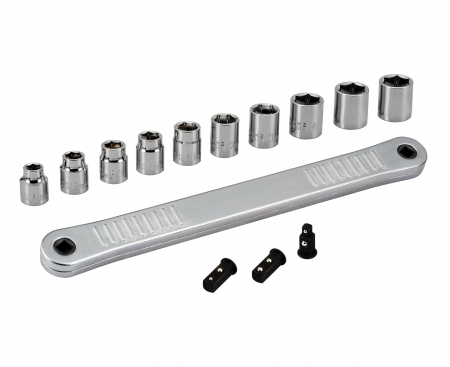

KA-5200K

Model

KA-5200K / KA-5200AK

Specification:

  • Includes 10 low profile socket 8,9,10,11,12,13,14,15,16,17mm.
  • KA-5200K      , Max torque: 71.87Nm/53ft.lb.
  • KA-5200AK    , Max torque: 161Nm/118.7ft.lb.
ADD INQUIRY

Description

  • 340mm / 13.4” length extension drive bar enables work in confined spaces easier.
  • Provided with two square drive adapters in 1/4” and 3/8”.

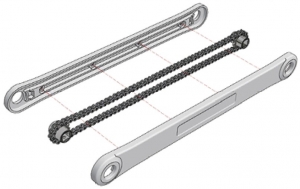

  • Chain-driven mechanism enhances working durability and smoothness.
KA-5200(示意圖1)
KA-5200K      Max torque: 71.87Nm/53ft.lb.
KA-5200AK   Max torque: 161Nm/118.7ft.lb.

Instruction:
For Loosening
  1. Use a standard wrench to loosen the fastener.
  2. Choose a suitable adapter (1/4” or 3/8”) and fit on one end of the extension bar.
  3. Connect a 3/8” ratchet wrench and fit on the other end of the extension bar for removing the fastener.

For Tightening
  1. Choose a suitable adapter (1/4” or 3/8”) and fit on one end of the extension bar
  2. Connect a 3/8/” ratchet wrench and fit on the other end of the extension bar for tightening the fastener
  3. Use a standard wrench to tighten the fastener with adequate torque
