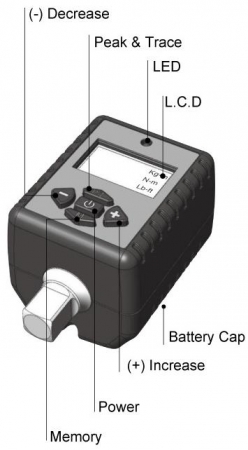

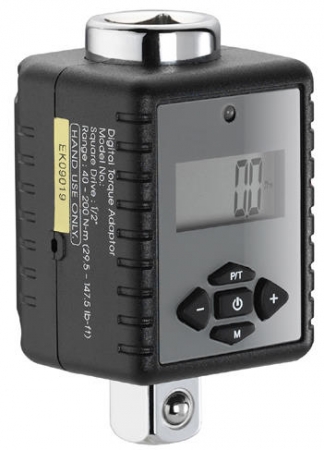

Digital Torque Adapter (3 unit set)
Model
KA-1621A / KA-1683A / KA-1641A
Specification:
- 50 memory record
- Track and Peak hold mode
- Auto shut off: 80 seconds (if do not use digital torque adapter)
- 3 unit set (kg-m, lb-ft, N-m)
- LED indicator: Green, Yellow, Red
- Overload Alarm(125%): 250N-m, 184.4lb-ft
| Model No. | KA-1621A | KA-1683A | KA-1641A | ||
|---|---|---|---|---|---|
| Drive | 1/2” | 3/8” | 1/4” | ||
| Accuracy | ±2% | ±2% | ±4% | ||
| Display resolution | 0.1 | 0.1 | 0.1 | ||
| Display Range | 40~200 N-m (29.5 ~ 147.5 lb-ft) |
27 ~ 135 N-m (19.9 ~ 99.6 lb-ft) |
6 ~ 30 N-m (4.4 ~ 22.1 lb-ft) |
||
| Weight | 183g | 182g | 180g | ||
| Size | L75 x W45mm | ||||
| Battery | CR2032 x 1pc | ||||
| Battery Life (continuous operation) |
55 hrs | ||||
| Operating Ambient Temperature | -10℃ ~ 60℃ (13.9℉ ~ 139.9℉) | ||||
| Storage Temperature | -20℃ ~ 70℃ (-4℉ ~ 157.9℉) | ||||
| Operating Re ative Humidity |
Humidity: 15 to 90% noncondensing | ||||
