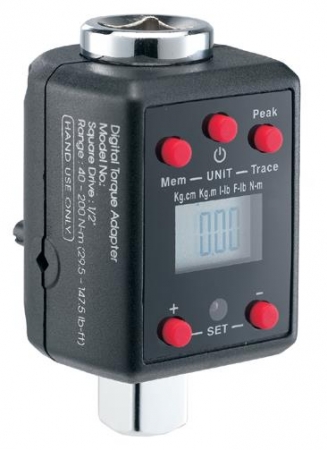

Digital Torque Adapter (5 unit set)
Model
KA-1621 / KA-1683 / KA-1641 / KA-1643 / KA-1643N
Specification:
- Function:
- 50 memory record
- Track and Peak hold mode
- Auto shut off: 80 seconds (if do not use digital torque adapter)
- 5 unit set (kg-cm, kg-m, lb-in, lb-ft, N-m)
| Model No. | KA-1621 | KA-1683 | KA-1641 | KA-1643 | KA-1643N | ||
|---|---|---|---|---|---|---|---|
| Drive | 1/2” | 3/8” | 1/4” | 3/4” | 3/4” | ||
| Accuracy | ±2% | ±2% | ±4% | ±2% | ±2% | ||
| Display resolution | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | ||
| Display Range | 40~200 N-m (29.5 ~ 147.5 lb-ft) |
27 ~ 135 N-m (19.9 ~ 99.6 lb-ft) |
6 ~ 30 N-m (4.4 ~ 22.1 lb-ft) |
100-500Nm (73.8 – 368.8lb-ft) |
200 ~ 1000 N-m (147.5 ~ 737.51 lb-ft) |
||
| Weight | 183g | 182g | 180g | 570g | |||
| Size | L75 x W45mm | L110 x W56mm | |||||
| Battery | CR2032 x 1pc | AA x 2pcs | |||||
| Battery Life (continuous operation) |
55 hrs | 110 hrs | |||||
| Operating Ambient Temperature | -10℃ ~ 60℃ (13.9℉ ~ 139.9℉) | ||||||
| Storage Temperature | -20℃ ~ 70℃ (-4℉ ~ 157.9℉) | ||||||
| Operating Re ative Humidity |
Humidity: 15 to 90% noncondensing | ||||||
