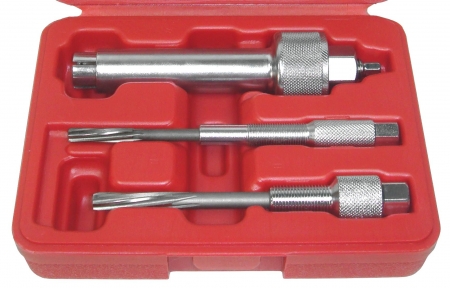

3pcs Pre-Heater Plug Puller Set
Model
KA-1330
Specification:
- To ream out and clean the bore between the glow plug and pre-combustion chamber.

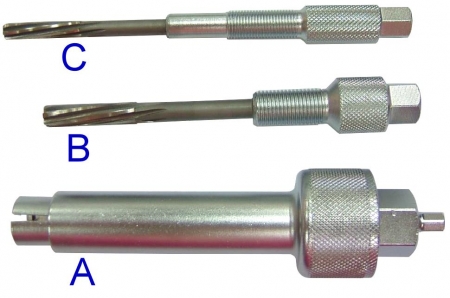

Content:
A: For pre-heater plugs with 10mm across flats on Mercedes CDI engines (OM611, 612, 613 etc)
B: For Mercedes 4-Valve-engies OM604, OM605, OM606 with glow plug threads
C: Important if the engine is difficult to start.
For Mercedes CDI engines 4.5 & 6 cylinder OM611, 612, 613 with glow plug threads M10 x 1.jpg)
A: For pre-heater plugs with 10mm across flats on Mercedes CDI engines (OM611, 612, 613 etc)
- For pulling out pre-heater plugs after have been unscrewed but are still located firmly in their holes.
- Length: 135mm
- Drive: 19mm hex
B: For Mercedes 4-Valve-engies OM604, OM605, OM606 with glow plug threads
- Size: M12 x 1.25
- Drive: 13mm hex
- Glow plug: 7mm
C: Important if the engine is difficult to start.
For Mercedes CDI engines 4.5 & 6 cylinder OM611, 612, 613 with glow plug threads M10 x 1
- Drive: 10mm hex
- Glow plug: 6mm
