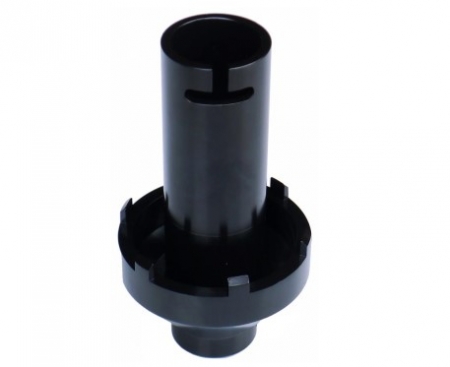

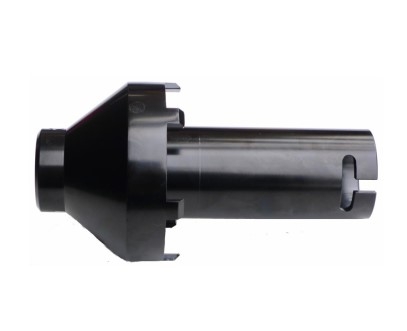

Groove Nut Socket With 6 Studs – 80 ~ 90mm
Model
KA-3689
Specification:
- Internal square drive to DIN 3121/ISO 1174.
- Rigid locating tube.
- Optional with expander sleeve (bayonet locking system).
- High accuracy of fit.
- Extremely robust execution.
- Suitable for high tightening and loosening torque.
- Special steel.
- Application: Mercedes Benz Atego Rear axle, Vitaro 814, MAN, etc
| Inner Ø mm | Outer Ø mm | Locating Tube Ø mm |
H mm | Stud Ø mm |
Stud | Stud width mm | kg |
|---|---|---|---|---|---|---|---|
| 80.0 | 95.0 | 49.0 | 175.0 | 87.0 | 6 | 10.0 | 1.63 |
