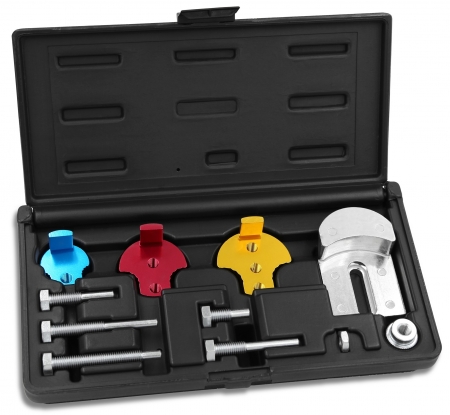

Stretch Belt Tool Kit
Model
KA-5290
Specification:
- Kit for mounting and dismounting the stretch belts without damaging pulleys and belts.
- Fast, easy and correct belt replacement.
- Large field of work through different mounting and dismounting tools.
- For : BMW, Cadillac, Chevrolet, Chrysler, Citroen, Fiat, Ford, GMC, Isuzu, Iveco, Lancia, Lincoln, Mazda, Mercedes, Peugeot, Volvo, etc.

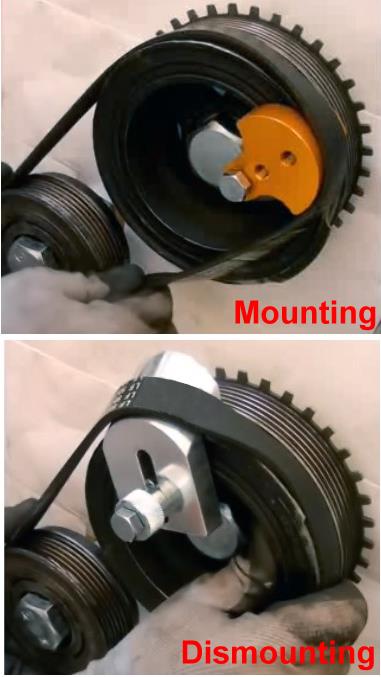

Application:

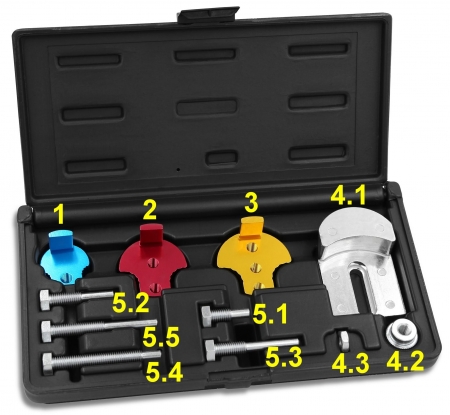

Mounting:
| 1 | Belt installer | Ø3 2mm |
| 2 | Belt installer | Ø4 5mm |
| 3 | Belt installer | Ø5 0mm |
| 5.1 | Screw | M8 x 25, Ø 5.9mm |
| 5.2 | Screw | M8 x 40, Ø 5.7mm |
| 5.3 | Screw | M8 x 53, Ø 5.7mm |
| 5.5 | Screw | M8 x 65, Ø 5.6mm –L = 32.5 |
Dismounting:
| 4.1 | Belt Remover | |
| 4.2 | Self Locking Nut | |
| 4.3 | Fixing Nut | M8 |
| 5.4 | Screw | M8 x 5.6mm – L = 11.5 |
| 5.5 | Scrw | M8 x 5.6mm – L = 32.5 |
