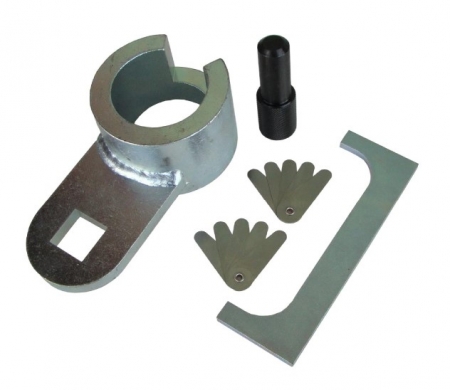

Engine Timing Tool Set For VGA-2.4D
Model
KA-8328
Specification:
- Set of engine timing locking tools for use on Volkswagen 2.4D with engine codes AAB, AJA(02/95-03)
- The correct alignment is achieved by placing equal thickness of shims (C) between both ends of the bracket and the cylinder head.
- Camshaft Setting Strap (B) is used to set the correct timing position of the camshaft.
- The centre part of the bracket fits into the slotted end of the camshaft and the ends of the bracket locate on the cylinder head
- Injection pump pulley setting spigot (D) is 15.4mm in diameter and is used on engines with a one piece injection pump sprocket
- The Crankshaft damper holding tool (A) prevents the damper from rotating whilst unfastening and refastening the centre bolt. This tool should be used with 3/4” power bar
