Engine Timing Tool Set For Renault-1.4 1.6 16V
Model
KA-8216-A1
Specification:

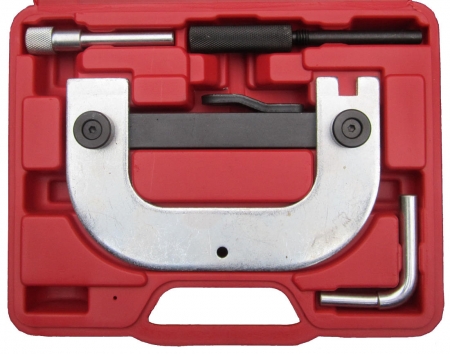

- This kit of three tools enables the correct engine timing to be performed on Renault K4J, K4M & F4P, F4R engines when changing the timing belt.
| CLIO | LAGUNA | MEGANE 1.4/1.6 16V |
| CHAMADE 1.9D | LAGUNA 1.9TDI | R20 2.0 8 & 12V |
| CLIO 1.2/1.4/1.6 16V/1.7 | MASTER 2.0/2.2 8 & 12V | R20 2.0 8 & 12V |
| CLIO 1.8/1.8 16V/1.9D/TD | MASTER 2.1D/2.5D/2.8D/TD | R21 1.7/1.9D/DT |
| CLIO SPORT 2.0016V | MEGANE 1.4/1.6 16V | R21 2.0 8 & 12V/TURBO |
| CLIO VAN 1.9D | MEGANE 1.9 D/TD/2.0 16V | R25 D TURO |
| CLIO WILLIAMS 2.0 16V | R5 1.6D/1.7 | R25 2.0 8 & 12V |
| ESPACE 2.0/2.2 8 & 16V/DT | R5 1.9D | R30 D TURBO |
| EXPRESS 1.9D | R9 1.6D | RAPID 1.9D |
| EXTRA 1.9D | R111.6D/1.7 | SCENIC 1.4/1.6/2.0 16V |
| FUEGO D TRUBO | R18 1.7/DT | SCENIC 1.9 TD |
| KANGOO 1.2/1.9 TD | R18 FUEGO 2.0 8V | TRAFIC 2.0/2.8 & 12V |
| LAGUNA 1.6 16V/1.8/1.8 16V | R19 1.8 16V/1.8/1.9DT | TRAFIC 1.7/2.1 D |
| LAGUNA 2.0 16V/1.9/2.0 TD | R20 DTURBO | TWINGO 1.2 |
