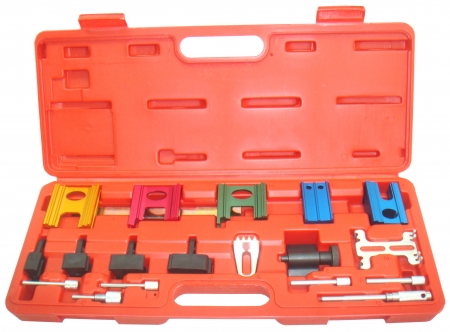

16pcs Twin Camshaft Locking & Setting Kit
Model
KA-4278K
Specification:
- The kit supplied with adequate tools to lock the camshafts on twin cam (multi-valve) engines in order to stop them rotating out of timed position when the timing belt is replaced and removed.
- It also provides different camshaft locking pins that can cover specific crankshaft and flywheel locking applications.
- Suitable for a range of vehicles including: Ford, Honda, Land Rover, Rover and Vauxhall / Opel
- Allows the service easier and reduce the risk of incorrect valve timing from taking place.

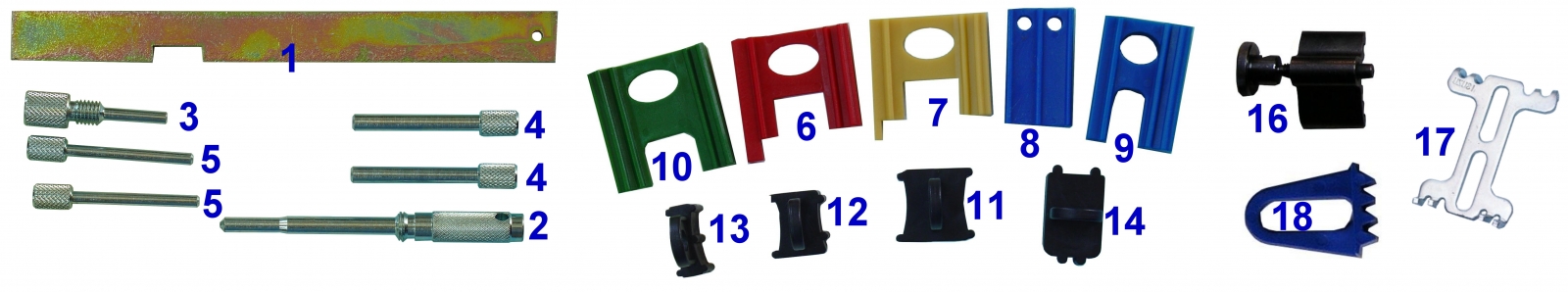

Content:
-1.jpg)
| Parts No. / Description | Parts No. / Description | |||
|---|---|---|---|---|
| 1 | KA-5115 Camshaft Setting/Locking Plate It is used to lock the camshafts in their position by way of a slot at rear of the camshafts. Ford: Fiesta 1.25, 1.4 (95-)_, 1.8-XR2i/Rs 1800 16V, Mondeo 1.6, 1.8, 2.0 16V (93-) Mazda: 121.1.25. |
2 | KA-5115-4 Balancer Shaft Locking Pin It purposed refitting the balancer shaft belf after renewal of the timing belt. Ford Honda: Accord/Pretude 2.3i (93-), Prelude 2.2. V-Tec, SOHC application: Accord 1.8, 2.0, 2.2. (-93), 2.0i (93-), Shuttle 2.2i Rover: 623 (93-), SOHC application 618/620 (93-) |
|
| 3 | KA-5115-1 Crankshaft TDC Location Pin This tool can be used on specific Ford and Mazda twin cam engines, in combination with the Camshaft Setting / locking Plate to ensure correct TDC position. Ford: Excort / Orion 1.6, 1.8i 16V (92-) Mazda: 121.1.25. |
4 | KA-5115-2 Camshaft Locking Pins(5.0mm, pair) Ford Honda: Civic 1.6 VTi Accord (90-), Prelude 2.0 16V (-90) Rover: 216, 416, GTi 16V(-95) D16A9 engine |
|
| 5 | KA-5115-3 Camshaft Locking Pins(6.8mm, pair) Kit supplied with two diameter-locking. pins: 5.0mm and 6.8mm. Insert the correct diameter locking pins to lock each camshaft in position with the timing marks aligned to those on the casing/cover. Rover: 220/Turbo T16(92-), 420 T16 (92-), 320/Turbo M16 (-91), 820/Turbo T16 Vitesse Turbo (91-), 620 Ti (94-), SOHC application 820 8V (M8) Land Rover: Discovery MPi 2.0 16V (93-), 20T4 engine |
6 | KA-7505 Camshaft Locking Tool Vauxhall / Opel: Vauxhall Cavalier 2.51, Calibra 2.51, Vectra 2.5, OMEGA 2.5/3.0L, Sintra 3.0L SAAB: 900 2.5, 9000 3.0 V6 |
|
| 7 | KA-7506 Camshaft Locking Tool Vauxhall / Opel: Vauxhall Cavalier 2.51, Calibra 2.51, Vectra 2.5/3.0L, Sintra 3.0L SAAB: 900 2.5, 9000 3.0 V6 |
8 | KA-7509 Camshaft Locking Tool For Rover K16 DOHC engines |
|
| 9 | KA-7508 Camshaft Locking Tool ECOTEC suitable for 16V 1.4/ 1.6L engines |
10 | KA-7505 Camshaft Locking Tool ECOTEC suitable for 16V 1.8/ 2.0L engines |
|
| 11 | KA-7508-3 Vauxhall / Opel: Astra 1.8/2.0 16V, Cavalier 2.0 16V, Calibra 2.0 16V/ Turbo Omega-B 1.4/1.6 16V, Later engines (93-) with small cam sprockets |
12 | KA-7508-2 Vauxhall / Opel: Astra 2.0 16V, Cavalier 2.0 16V, Calibra 2.0 16V, Early engines (-92) with large cam sprockets. |
|
| 13 | KA-7508-1 Rover: Metro GTa/GTi 16V K16(-95), 214, 414 K16(89-) 216, 416 K16 (95-), MGF 1.8 MPi/VVC (95-) |
14 | KA-7508-4 Land Rover: Discovery MPi 2.0 16V(93-), 20T4 engine Rover: 220 M16(-92), 220/Turbo T16(92-), 420 M16(-92), 420 T16(92-), 320/Turbo M16(-91), 620Ti(94-), 820/Turbo T16 Vitesse Turbo(91-) |
|
| 16 | KA-5132 Works on: VOLKSWAGEN BORA, GOLF, LUPO AND POLO Tdi’s. |
17 | KA-4278K-P17 Vauxhall / Opel: 1.2, 1.4, 1.6, 1.8, 2.0 OHC Petrol engines 1.6D & 1.7 OHC Diesel engines 1.5 & 1.7 OHC Diesel(Isuzu) engines |
|
| 18 | KA-4278K-P18 Citroen: Synergle 2.0/Turbo, ZX 1.9D/TD,Xantia 1.9D/TD, Berlingo 1.9D, Dispatch 1.9D/TD, Synergle 1.9D, Relay 1.9D/TD Fiat: Ulysse 2.0/Turbo, Ducato 2.0 FSO 1.9D LDV: 200 1.9D, Pilot 1.9D Peugeot: 205 1.6/1.9, 305 1.6/1.9, 309 1.6/1.9 405 1.6/1.9, 405 1.8/2.0 (92-), 605 2.0 Boxer 2.0, c205 1.8/1.9D, 305 1.8/1.9D,306 1.8/1.9D/TD 309 1.8/1.9D 1.8TD, 405 1.8TD, 405 1.9D, 406 1.9D, Partner 1.9D Talbot/Horizon/Solara 1.9D, J5/Talbot Express 1.9D 605D/TD, 806 1.9TD, Expert 1.9D, Boxer 1.9D/TD |
Renault: R5 1.6D,R9 1.6D, 411 1.6D Express/Extra 1.6D-F8M Diesel engines Clio, Express/Extra, R19 1.9D – early F8Q Diesel engines Espace 2.1D, R21 2.1D, R25 2.1D, Trafic/Master 2.1D – J8S Diesel engines Clio 1.2/1.4, Express/Extra, R19 1.4, Megane/Scenic 1.4/1.6 – E7F/E7J Petrol engines R5 1.7, Clio 1.7/1.8, R19 1.7, R21 1.7, Megane/Scenic 2.0 Laguna 1.8/2.0, Trafic 1.7 – F3N/F3P/F2R Petrol engines Clio Williams, R19, Megane 2.0 16V Twin cam F7P/F7R engines Laguna/Safrane 2.0 16V Twin cam N7Q/N7U engines |
||
