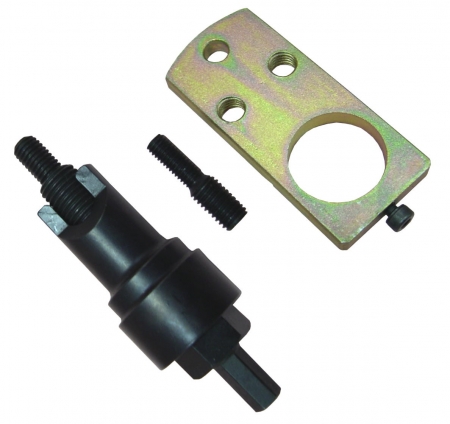

Guide Rail Pin Puller

KA-6934(1)
KA-6934(1)

Model

KA-6934

Description

  • To remove even the most stubborn pins form the cylinder head. This puller incorporates a thrust bearing to ease the pulling action. The overall length is 85mm. Which allows it to fit into those tight problem areas.
  • This alloy steel heat treated tool has already been tested in shops and has proven to be the best solution.

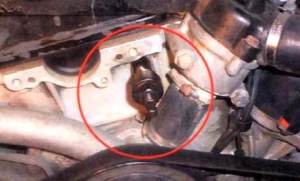

KA-6934(示意圖)
Applicable:
Model M102. M110. M115. M116. M117. M130. OM 601. OM 602. OM 603. OM 615. OM 616 & OM 617.
Screw specification: M8 x P1.25 x M6 x P1.0 x 1pcs  /  M8 x P1.25 x 30MM x 1pcs
