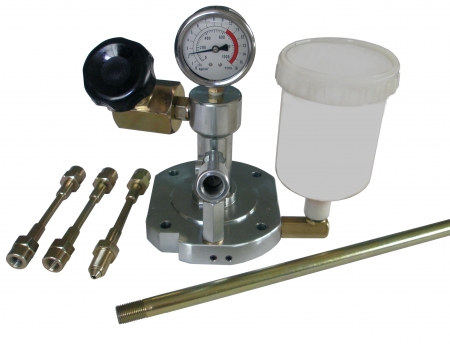

Heavy-Duty Diesel Engine Nozzle Testing & Cleaning Set

For Diesel Engine Tester
KA-7018
KA-7018

Model

KA-7018

Specification:

  • FOR ALL DIESEL ENGINE CARS & TRUCKS
  • For Testing injection nozzle opening pressure, leakage spray pattern, Atomization & Chatter Characteristic & Cleaner.
  • Capacity: SAFE WORKING PRESSURE
  • Max.: 9000 PSI  (640 KG/CM2)
  • Adapters: M-12 x P1.5,  M-14 x P1.5,  M-16 x P1.5
  • Weight: 8 kg
  • Pressure Gauge: 70mm,  Pump: 11mm,  Stroke: 20mm
  • Discharge Amount: 2.0cc

Description

  • Simple & Easy to operating by hand
  • Follow New International Standard
  • Clean the Nozzle with 3M Cleaning Solution for Diesel Nozzle.
  • (Please fill the Cleaning Solution in the white pot)
Pressure unit conversion table

  psi bar kg/cm2
1PSI 1.0 0.069 0.07
1BAR 14.5 1.0 1.02
1kg/cm2 14.2 0.98 1.0
1bar=100kPa



WARNING
  1. Before operating, please fill the pump with approx. 6cc diesel fuel to avoid idling.
  2. To avoid injury by high pressure spraying while operating, do not stand in front of the nozzle, do not place hands in front of the nozzle, do not expose any body parts in front of the nozzle, please do not operate when any person is standing in front of the nozzle.
  3. Please wear safety goggle or slippery-proof footwear.
  4. Please do not operate near fire.
