Diesel Compression Tester Set(For Mack Truck Engines)
Model
KA-7239K
Specification:

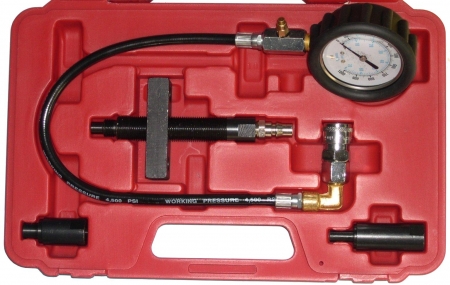

- Set contains one gauge and a complete adapter system for testing cylinder compression through the injector port on most mack truck engines. Gauge includes release valve and 368mm(14.5”) of hose, dial reads from 0 – 1,000psi and 0 – 70bar. Unique swivel end quick coupler allows the operator to connect the adapter quickly and easily.
| Application | Engine |
|---|---|
| Allis chalmers | 6000, 7000, 10000, 11000 |
| Bedlford | 200, 220, 300, 330, 466 |
| Case, J.I. | all models not using pencil nozzle |
| Deere, John | 404, 466, 531, 619 |
| Fiat Allis | 8035-02-300, 8035-02-301, 8035-02-302, 8045-02, 8045-03 |
| Ford Tractor | all |
| International Harvester |
D/DT 361, D/DT 429, DV 462, DV/DVT 550 DT/DV/DVT 573, 361, 407 |
| Mack Truck | END 405, 457, 475, 510, 519, 605, 672, 673, 674, 711, 864, ENDT 673, 675, 676, 865, 866 |
| Onan | DSL, MDSL |
| Waukesha | 180DLC, 190D, 195D, 197D |
| White Farm | 66, 77, 88, 99, 166, 177, 188, 199, 550, 660, 770, 880, 950, 1550, 1555, 1600, 1650, 1655, 1750, 1755 & 1800 |
