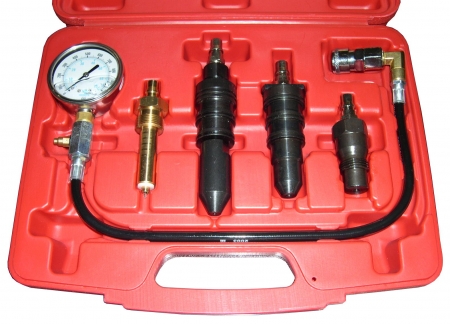

Diesel Engine Compression Tester Set

For Diesel Engine Tester
KA-2402
KA-2402

Model

KA-2402

Specification:

  • FOR CUMMINS ENGINES

ITEM NO. ENGINE TESTING PORT THREAD
2.9L, 3.9L, 5.9L FUEL INJECTOR 24.0mm – 1.5
6 BT, 4.02”bore, 5.9 liter FUEL INJECTOR 24.0mm – 2.0
V-185, V-210, V-225
V-555, VT-255, VT-555
FUEL INJECTOR

These 5.5” bore engines: NH(855 cubic inches), V-6, V-8, V-12 & 903 V-8 Cylindrical PTB FUEL INJECTOR

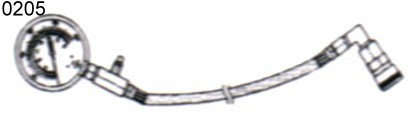

GAUGE INCLUDES RELEASE VALVE AND 368mm(14.5”) OF HOSE, DIAL READS FROM 0-1,000 PSI AND 0-70 BAR.
