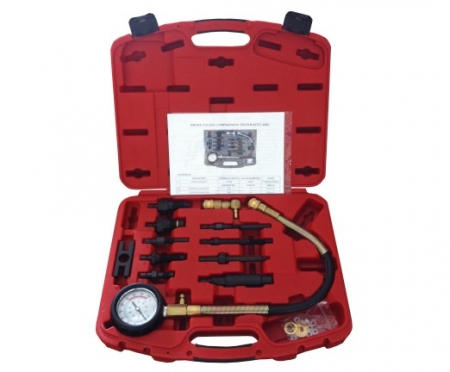

Diesel Engine Compression Tester Set (Cars)

For Diesel Engine Tester
KA-6720KN 宏沺 紅色吹氣盒
KA-6720KN 宏沺 紅色吹氣盒

Model

KA-6720KN

Description

  • Comprehensive test kit for both direct and indirect diesel injected commercial, marine and industrial engines.
  • Simple & easy to use.
  • Checks engine compression under cranking conditions.
  • Small profile, quick coupling adapters for speed & security
  • Built-in pressure release enables complete test without dismantling.
  • Flexible hose (355mm) gives access to restricted space.
APPLICATIONS:
BMW, HOLDEN, NISSAN, VAUXHALL, CARBODIES, ISUZU, OPEL, VOLKSWAGEN, CITROEN, LAND ROVER, PEUGEOT VOLVO, DACIA, LEYLAND/DAF, RENAULT, DIAHATSU, MAZDA, ROVER, FIAT, MERCEDES-BENZ, SEAT, FORD, MITSUBISHI, TOYOTA


  DESCRIPTION OVERRALL LENGTH GAUGE DIAMETER SCALE
A GAUGE ASSEMBLY 560mm 83mm 0-70 BAR (0-1000PSI)


OUTSIDE DIA

LENGTH THREAD
B GLOWPLUG ADAPTER 14H 74 M10X1.25
C GLOWPLUG ADAPTER 5/8H 54 M12X1.25
D GLOWPLUG ADAPTER 19H 72 M14X1.25
E DUMMY INJECTOR Ø21 114 N/A
F DUMMY INJECTOR 27H 65.5 M24X2.0
G STANDYNE DUMMY INJECTOR Ø19 112 N/A
H GLOWPLUG ADAPTER 12H 114 M10X1.25
I GLOWPLUG ADAPTER 12H 119 M10X1.0
J DUMMY INJECTOR 21H 76 M20X1.5
K 90∘ELBOW
L REPLACEMENT SEAL AND WAHSER SET
    LENGTH WIDTH HOLE DIA.
M CLAMP PLATE 64 25 17
TOP
