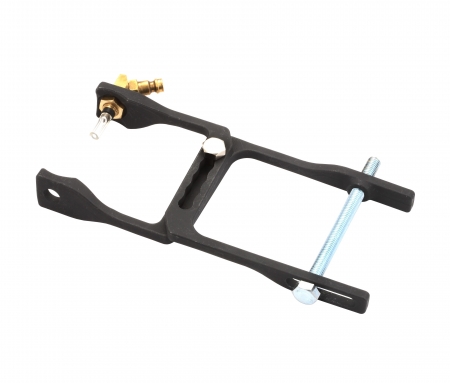

Quick Test Clamp For Oil Pressure

Engine Tester
KA-7268
KA-7268

Model

KA-7268

Specification:

  • parts for oil pressure test kit (KA-7268K)
  • Body size: L: 187mm, W: 109mm
  • Body material: SCM440
  • HRC: 45 ~ 48 degree
  • Sharp max length: 19mm
  • Sharp material: SUJ2
  • HRC: 55 ~ 58 degree

Description

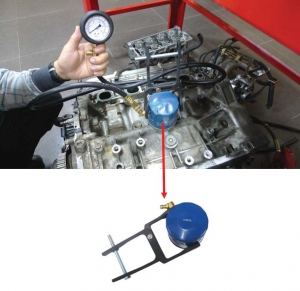

  • For testing engine oil pressure by pierce through oil filter canister when oil pressure switch is hard to access.
  • Applicable to both gasoline and diesel engines, also suitable for passenger cars and light trucks.
  • Use in conjunction with KA-7268K.
KA-7268K(示意圖1)
