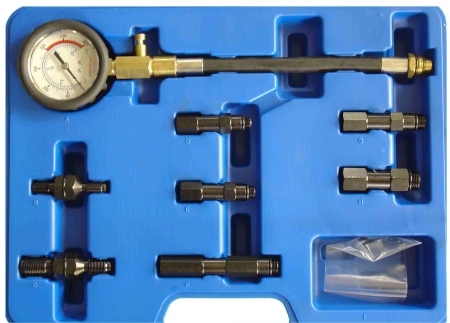

Heavy-Duty Petrol Engine Compression Tester Kit

KA-6721KN(藍吹氣盒)
KA-6721KN(藍吹氣盒)

Model

KA-6721KN

Description

  • Petrol compression tester for vehicles with m10, m12,m14 and m18 spark plug thread. Complete with extensions, thread chasers and service kit.
  • Easy to use.
  • Checks condition of valves piston rings. Gaskets & cylinder heads.
  • Pressure relief valve enables repeated testing of a cylinder without removing the gauge. DUAL SCALE 83MM DIA GAUGE 0~300PSI & 0-20 BAR.



Description Over all Length Gauge diameter Scale Applications
A Gauge assembly 200mm 83mm 0-20Bar (0-300psi) Compressor tester general purpose M14 & M18 plug ports


DIA. x L

THREAD

THREAD


B Thread chaser 21Hx64 M10X1.0 M12x1.25
C Thread chaser 21Hx77 M14x1.25 M18x1.5


DIA. x L

INT. THREAD

EXT. THREAD


D Adapter 5/8x63.5 M14x1.25 M10x1.0 Extension M10 x 1.0-63.5mm Motorcycles
E Adapter 5/8x63.5 M14x1.25 M12x1.25 Extension M12 x 1.25-63.5mm Motorcycles
F Adapter 5/8x63.5 M14x1.25 M14x1.25
  • For use on engines with deep sedated plug ports
  • For difficult access due to obstruction. Two extensions included in this set, F and G, which can be used separately or togther
G Adapter 5/8x70 M14x1.25 M14x1.25
H Adapter 19HX69.5 M14x1.25 M18x1.5 Provides easy & Improved access on ford pinto engines as used in sierra & cortina models.
I Service Kit
