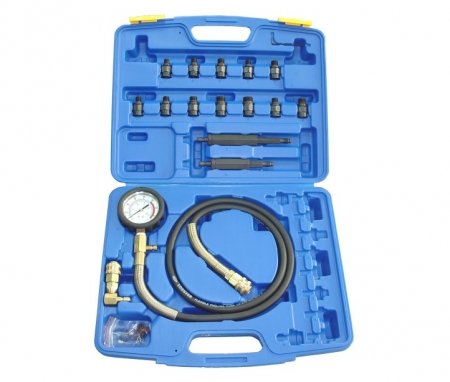

Oil Pressure Tester Kit

Engine Tester
KA-6722KN-A
KA-6722KN-A

Model

KA-6722KN-A

Specification:

  • Helps to diagnose work oil pumps and engines faulty oil pressure switches and warning indicators
  • Easy to use.
  • Accurately tests oil pump pressure, switch & warning indicators.
  • Large clear dual scaled gauge 0 – 10 bar.
  • Quick coupling adapters with shut-off valve, for speed & security.

Gauge Assembly:

  Hose overall length Gauge Diameter Scale
A 1300mm 63.5mm 0-10 bar (0 ~ 150psi)
  Adapters Adapters Thread
B   1/8x28PT
C   1/8x27NPT
D   1/4x18NPT
E   3/8x20UNF
F   1/2x20UNF
G   M10x1.0
H   M12x1.5
I   M14x1.5
J   M16x1.5
K   M18x1.5
L   90∘ELBOW
M   SERVICE KIT

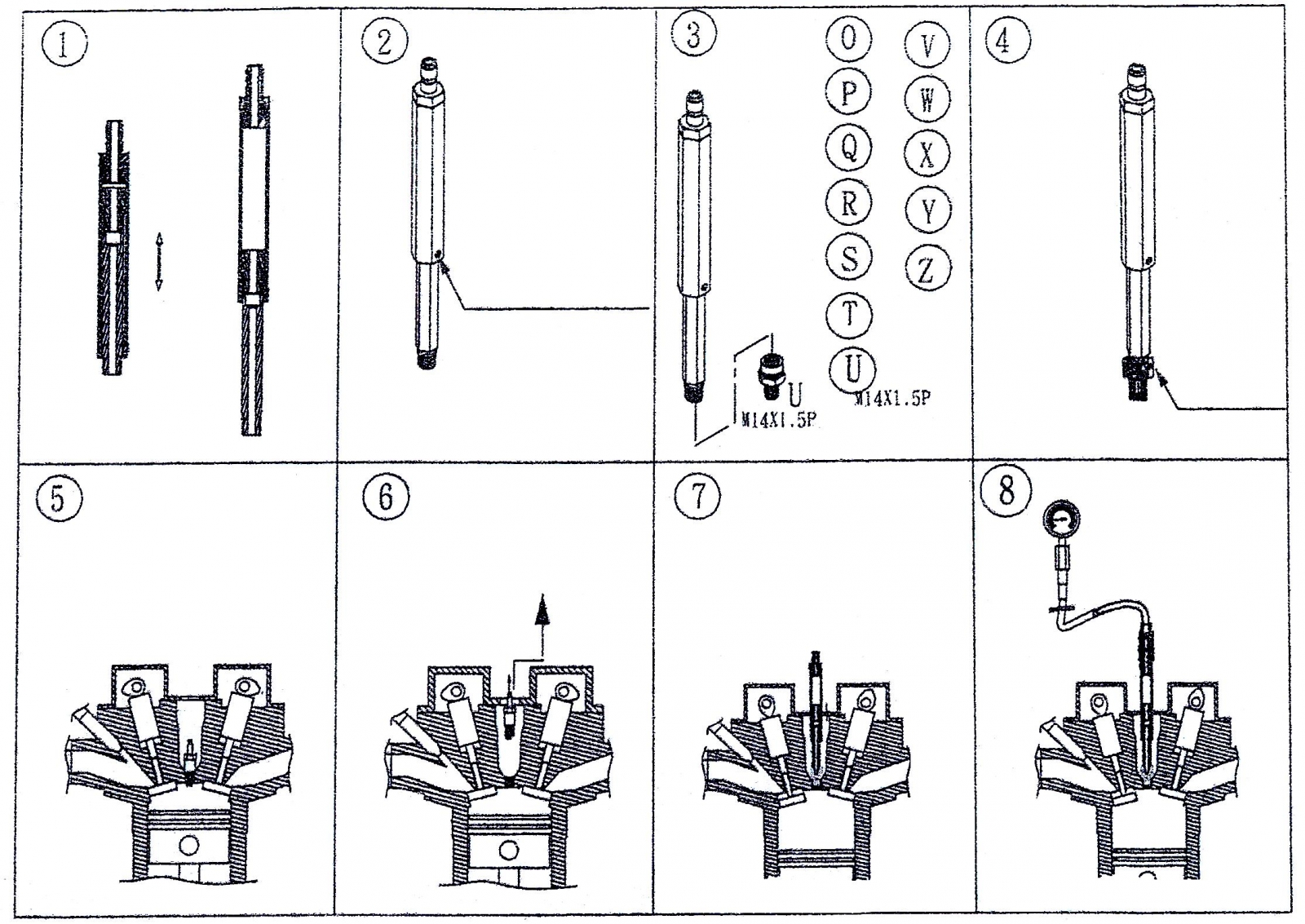

Preparation before Testing:
1. Adjust the Cylinder Pressure Testing Rod (M or N) to Required Length
2. Secure the length with Screw A.
3. Select the Suitable Adapter (O ~ Z)
4. Insert the Suitable Adapter into the Threaded End, and Tighten the Screw B.
5. & 6. Remove the Spark Plug from the Engine Chamber
7. Insert the Cylinder Pressure Testing Rod into the Engine Chamber
8. Connect the Cylinder Pressure Testing Rod with Pressure Testing Gauge.
