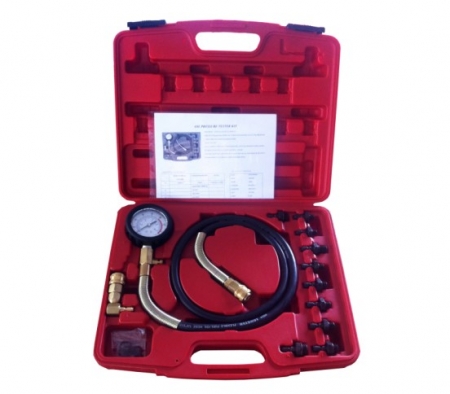

Heavy Duty Oil Pressure Tester Kit
Model
KA-6722KN
Specification:
- Helps to diagnose work oil pumps and engines faulty oil pressure switches and warning indicators easy to use.
- Accurately tests oil pump pressure, switch & warning indicators.
- Large clear dual scaled gauge 0 – 10 bar.
- Quick coupling adapters with shut-off valve, for speed & security.
- Permanently oil primed, long, flexible hose
- APPLICATIONS: ALFA,MITSUBISHI, AUDI, NISSAN, BMW, OPEL, CTTROEN, PEUGEOT, DAIHATSU, RENAULT, FIAT, ROVER, FORD, SAAB, HONDA, SKODA, HYUNDAI, SUBARU, ISUZU, SUZUKI, JAGUAR, TOYOTA, LADA, VAUXHALL, LANCIA, VW, MAZDA, VOLVO, MERCEDES-BENZ, ZASTAVA
Gauge Assembly:
| Hose overall length | Gauge Diameter | Scale | |
|---|---|---|---|
| A | 1300mm | 63.5mm | 0-10 bar (0 ~ 150psi) |
| Adapters | Adapters Thread | ||
| B | 1/8x28PT | ||
| C | 1/8x27NPT | ||
| D | 1/4x18NPT | ||
| E | 3/8x20UNF | ||
| F | 1/2x20UNF | ||
| G | M10x1.0 | ||
| H | M12x1.5 | ||
| I | M14x1.5 | ||
| J | M16x1.5 | ||
| K | M18x1.5 | ||
| L | 90∘ELBOW | ||
| M | SERVICE KIT |
