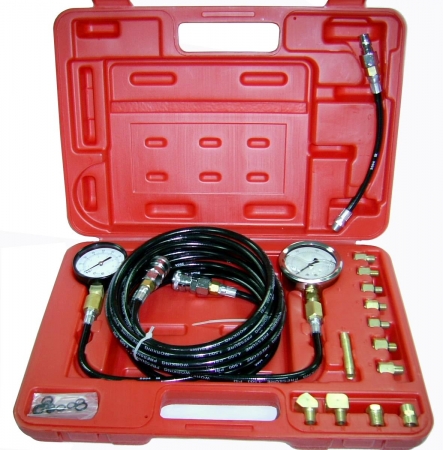

Transmission Pressure Tester
Model
KA-7530K
Specification:
- For all major manufacturer domestic and import vehicles.
- Set contains two gauge assemblies for high and low pressure ranges. Nine adaptors to test a wide variety of domestic and import automatic transmissions. Four special fittings are also included for connection to hard-to-reach test ports in areas requiring a 45∘or 90∘angle.
- All contained in a plastic storage case.
Parts List:
| Desc. | Q’ty |
|---|---|
| 0-100 PSI low pressure gauge assembly | 1 |
| 0-500 PSI high pressure gauge assembly | 1 |
| Adaptor hose 1/8-27 NPT | 1 |
| Adaptor 1/8-27 to 1/4-18 NPT | 1 |
| Adaptor 1/8-27 to 1/8-28 BSPT | 1 |
| Adaptor 1/8-27 to M10-1.0 | 1 |
| Fitting 1/8-27 90∘steering elbow | 1 |
| Fitting 1/8-27 nipple 2” long | 1 |
| Fitting 1/8-27 coupling | 1 |
| Adaptor 1/8-27 to M8-1.0 | 1 |
| Adaptor 1/8-27 to M8-1.25 | 1 |
| Adaptor 1/8-27 to 5/16-24 NF | 1 |
| Adaptor 1/8-27 to 1/16-27 NPT | 1 |
| Fitting 1/8-27 45∘steering elbow | 1 |
| Adaptor 1/8-27 to VW Audi | 1 |
