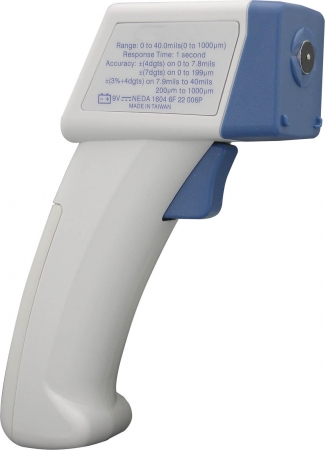

Coating Thickness Gauge

Universal Diagnostic & Testing Tools
KA-CHY113
KA-CHY113

Model

KA-CHY113

Specification:

  • 2-point calibration
  • μm/mils user-selective
  • Display Back-Light feature
  • Auto power off function
  • Portability and simplicity one hand operation
  • CE-Mark Approval
  • For the ferrous material use

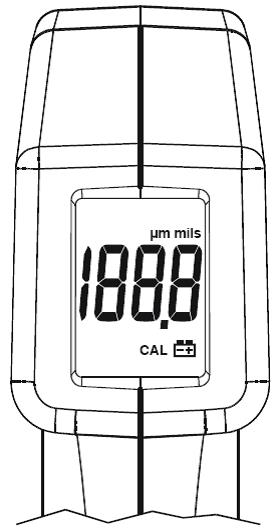

  • Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
  • Low battery indication: The “” or “” is displayed when the battery voltage drops below the operating level.
  • Operating environment: 0°C to 40°C at<90% R.H.
  • Without strong magnetic field.
  • Storage temperature: -20°C to 60°C, 0 to 80% R.H.
  • with battery removed from meter.
  • Accuracy: Stated accuracy at 23°C±5°C, <75% R.H.
  • Auto power off: 15 seconds.
  • Dimensions: 148mm(H) x 105mm(W) x 42mm(D).

Technical Data Display
Range: 0 to 40.0mils (0 to 1000μm)
Resolution: 0.1mils /1μm
Response Time: 1 second
Accuracy:     ± (4dgts) on 0 to 7.8mils
± (7dgts) on 0 to 199μm
± (3% + 4 dgts) on 7.9 to 7.8mils
                          on 200 to 1000μm
