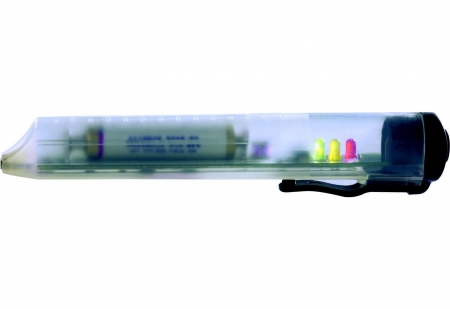

Brake Fluid Tester
Model
KA-3489BF
Specification:
- Length: 125mm
- Compact and Accurate
- Easy to Use
- CE, RoHS Conformity
Description
|
|
Operation
Battery Installation:
Calibration Check:
To confirm correct operation, immerse probe in plain water, red LED will illuminate if tester is operating correctly.
REMEMBER TO DRY TESTER BEFORE USING IN BRAKE FLUID.
* Wear Eye, Face and Hand Protection when Testing the Brake Fluid.
- Press switch to turn on- green LED illuminates to indicate battery OK (red LED replace battery).
- Note: Tester has auto-off function
- Immerse probe of the tester into brake fluid (probe tip must be at least 10mm above bottom of fluid reservoir).
Green LED= Brake Fluid H2O<1.5%
Brake Fluid OK/ Battery OK
Yellow LED= Brake Fluid H2O<1.5~3%
Low percentage of water
Change again within 6 months
Red LED = Brake Fluid H2O>3%
Change Brake Fluid
Battery Installation:
- Remove switch cap
- Withdraw circuit board
- Fit battery –positive towards LED.
- Slide circuit board into case, ensuring it engages in slots on side of case.
- Lay back switch cap.
Calibration Check:
To confirm correct operation, immerse probe in plain water, red LED will illuminate if tester is operating correctly.
REMEMBER TO DRY TESTER BEFORE USING IN BRAKE FLUID.
* Wear Eye, Face and Hand Protection when Testing the Brake Fluid.
