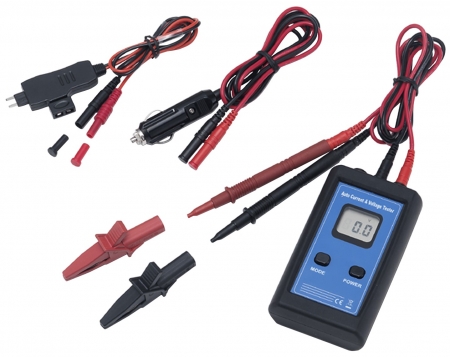

30A Current and Voltage Tester
Model
KA-1061
Specification:
- Fast, accurate and safety current measurement form the fuse box.
- Feature with large LCD display and mini/ATO fuse probe.
- Ideal for diagnostic of vehicle’s electrical.
Current measurement:
Voltage Measurement:
Continuity test:
Max. loading: 30A/18V DC for 10 seconds.
Accuracy: +/-1%, or 0.1 reading with 1 decimal place.
Accuracy: +/-1%, or 0.1 reading with 1 decimal place.
Voltage Measurement:
Range: 1-48V DC
Accuracy: +/-1%, or 0.1 reading with 1 decimal place.
Wrong polarity: when user reversely connects the polarity, the display will show “ERR”Accuracy: +/-1%, or 0.1 reading with 1 decimal place.
Continuity test:
If the measured resistance is less than 1KΩ, LCD will display “ERR”.
Working temperature: 0 to 60℃ (-4℉ to 140℉)
Moisture: <70% RH (working), <80% RH (storage)
Max. height: 7,000ft (2,000m)
Power: 9V battery x 1
Working temperature: 0 to 60℃ (-4℉ to 140℉)
Moisture: <70% RH (working), <80% RH (storage)
Max. height: 7,000ft (2,000m)
Power: 9V battery x 1
