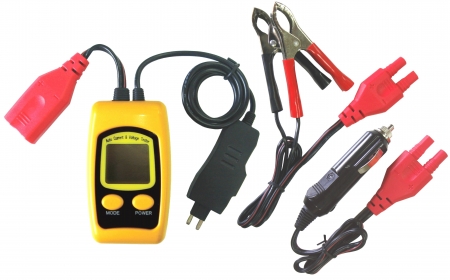

20A Auto Current Tester
Model
KA-1035
Specification:

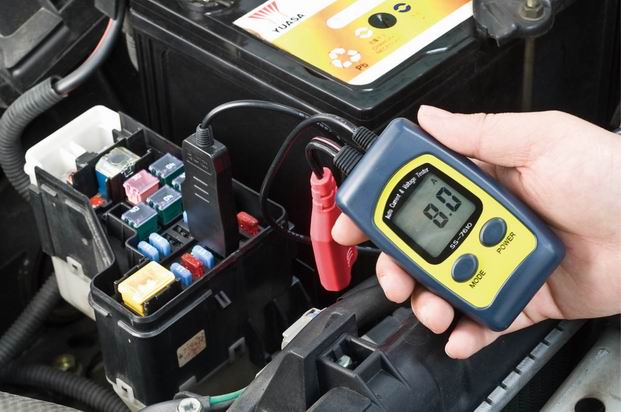

- Simply plugs into a fuse slot and the current in the circuit is displayed immediately. Provides an easy-to read LCD display of the circuits performance. Identifies the circuit draining your car battery.
Current Test:
.jpg)
.jpg)
.jpg)
-- Maximum load: 20A/48V DC for 10 seconds
-- Accuracy: ±2%, or 0.2 reading with a decimal point

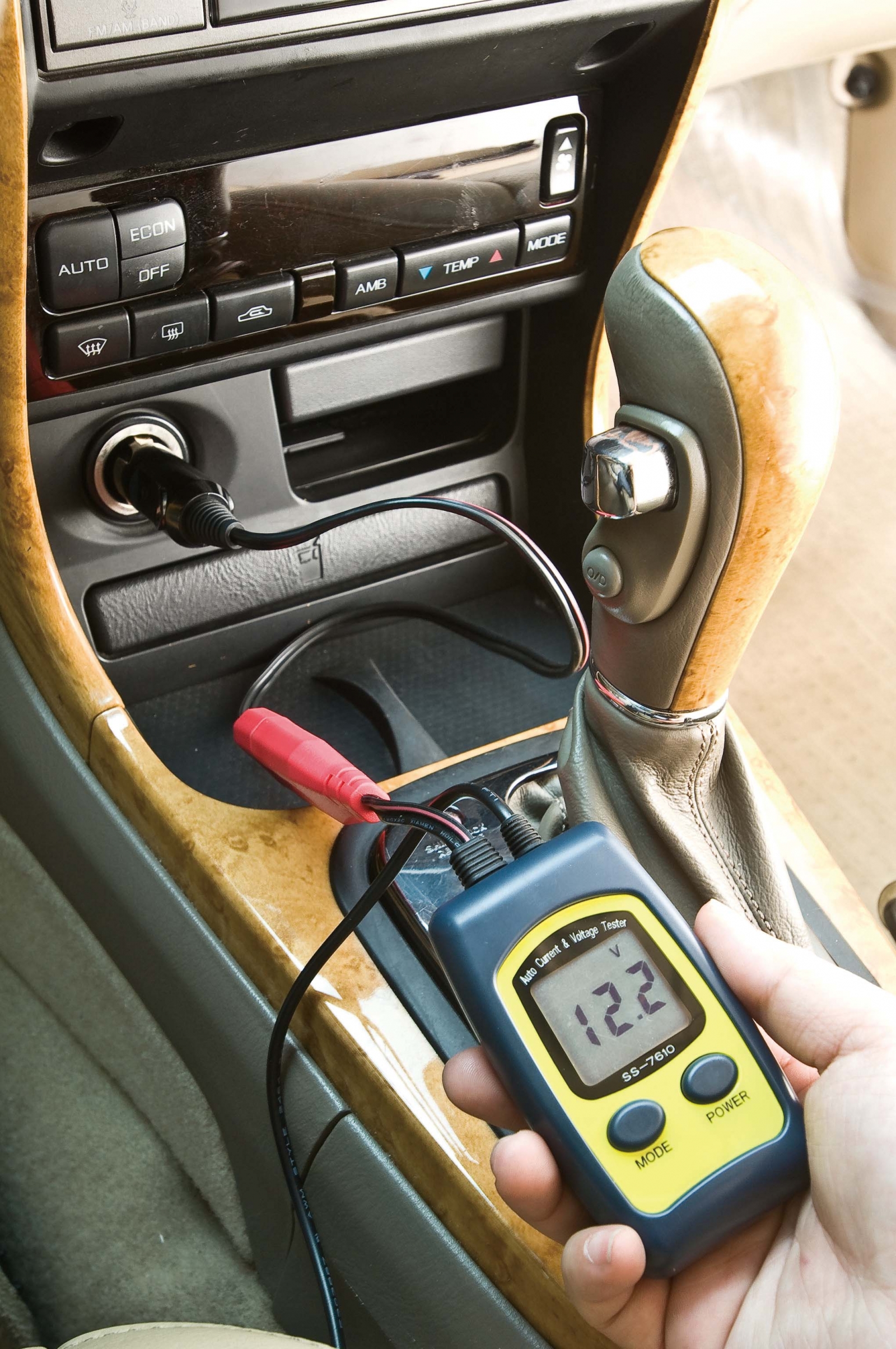

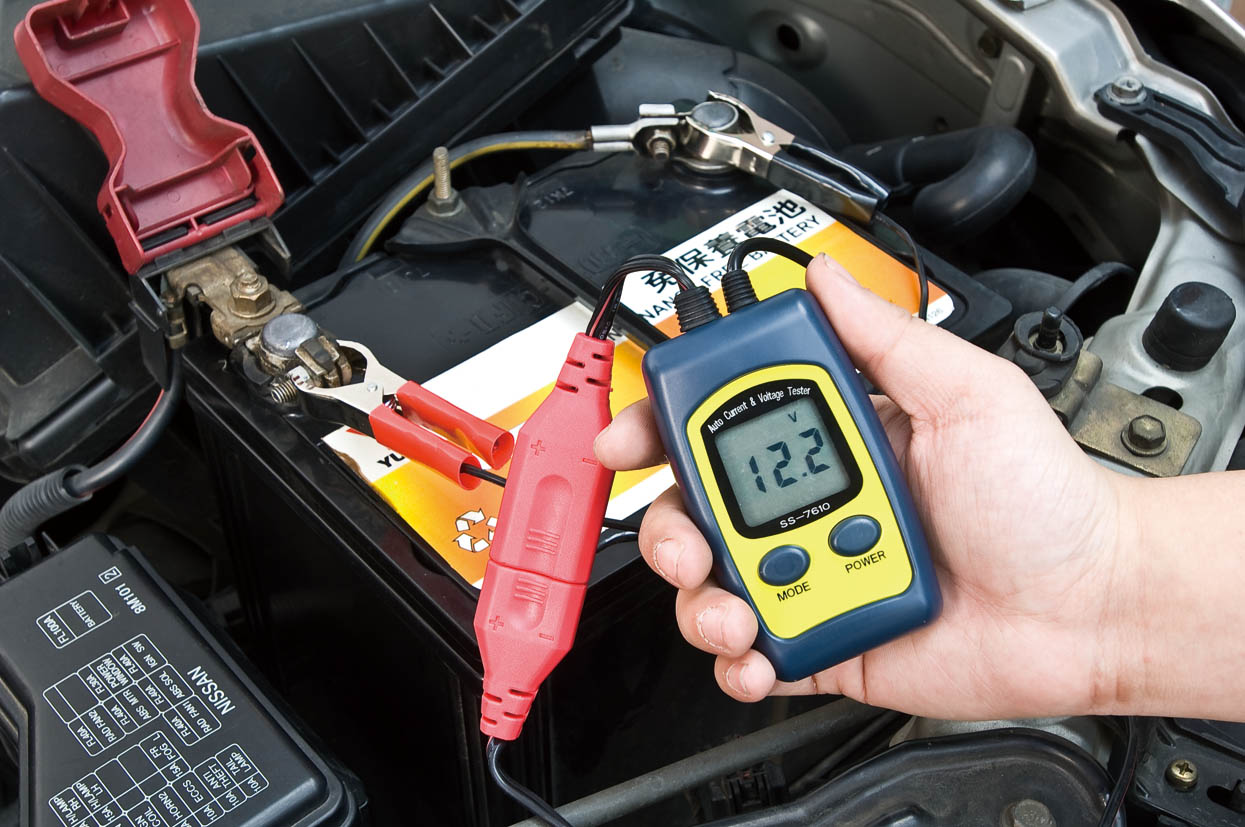

Voltage Test:
-- Accuracy: ±2%, or 0.2 reading with a decimal point
-- Test range: 1~ 48V
-- Accuracy: ±1% or 0.1 reading with a decimal point
The LCD indicates “Err” condition:
-- Accuracy: ±1% or 0.1 reading with a decimal point
-- When the positive or negative pole is connected reversely
-- The tested voltage is less than 1V
-- When conducting voltage test, the resistance between the measured object is less than 1K
Power Supply: one AAA 1.5V battery(not included)-- The tested voltage is less than 1V
-- When conducting voltage test, the resistance between the measured object is less than 1K
