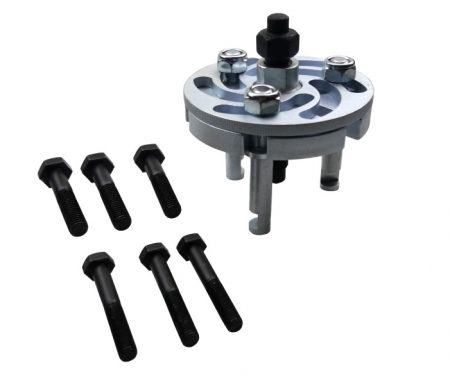

Timing Pulley Puller - Extended

Universal Timing Tool
KA-2911E
KA-2911E

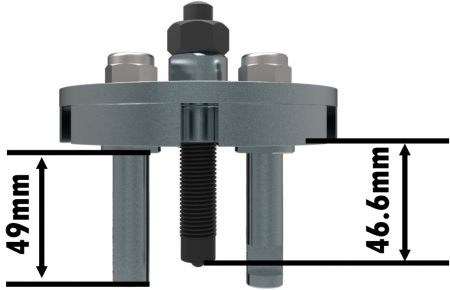

KA-2911D(size)

Model

KA-2911E

Specification:

  • Include M8 x 1.25 x 50L & M10 x 1.5 x 50L screws

Description

  • This tool is designed for removing drive pulleys with face grooves.
  • The tool removes a pulley absolutely free of any risk of damage.
  • The tool is adaptable to different pulley diameters, as the legs are adjustable.
  • For removing pulleys with 3, 6, 9 slots.
  • Surface finish: chrome plated, screw blackened

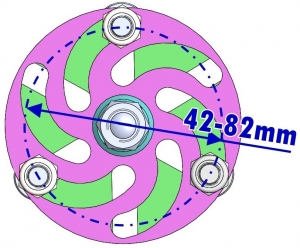

KA-2911C(capacity)
Size:

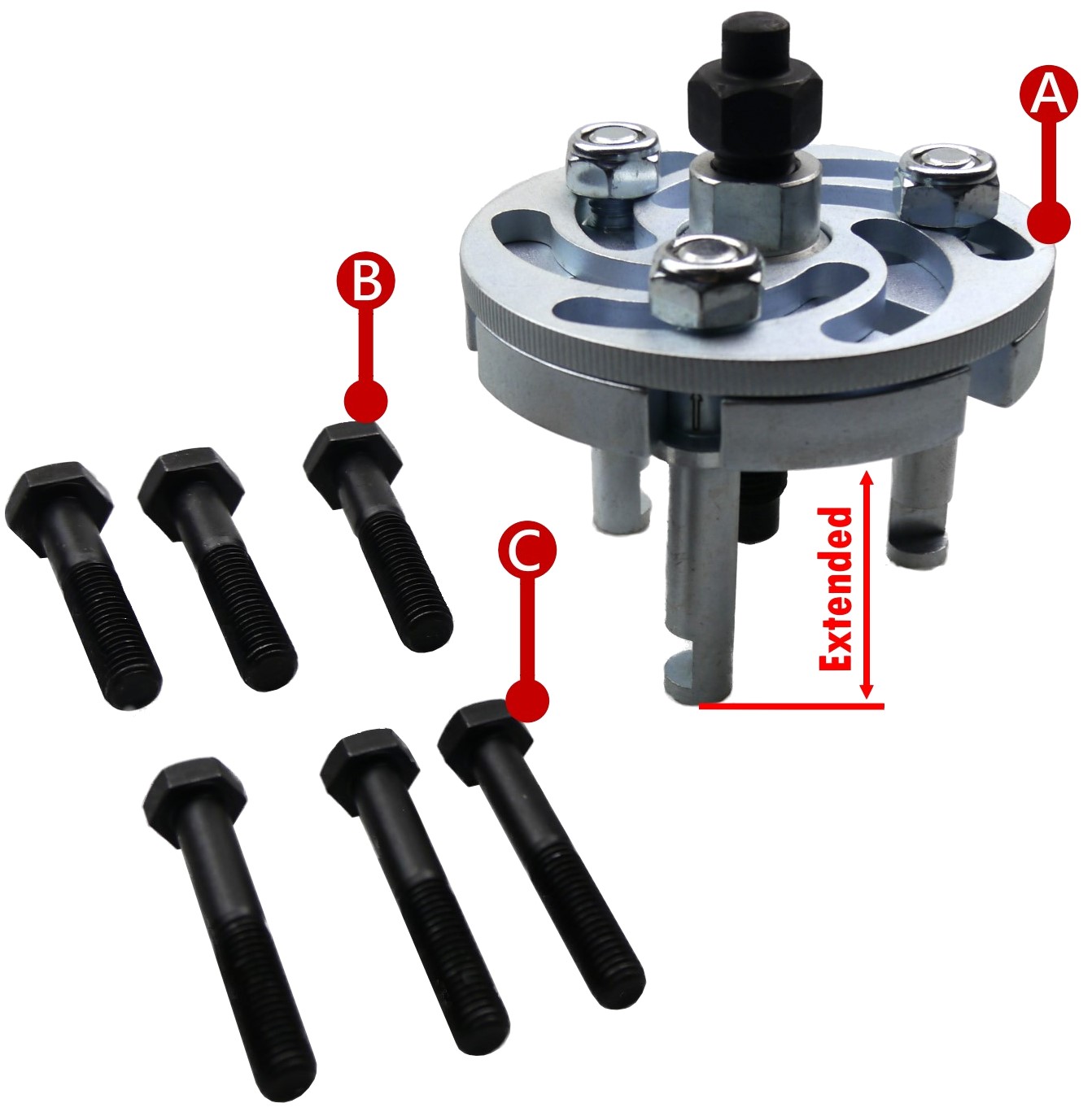

Content:

A: Timing Pulley Puller (extended) x 1pc
B: Screws M8 x 1.25 x 50L x 3pcs
C: Screws M10 x 1.5 x 50L x 3pcs

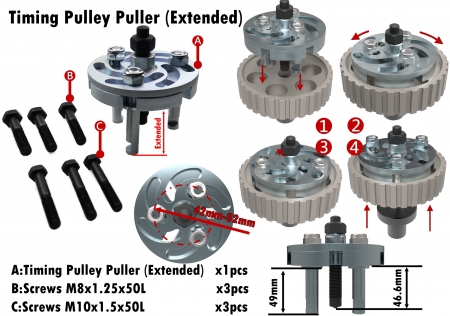

Instruction:
Step 1:
Step 2:

Step 3:

Step 4:
