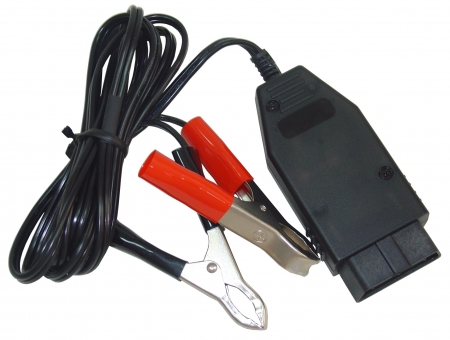

Uninterruptible Power Supply Without On Board Diagnostic II (OBD Ⅱ 16pin)

Battery Tool
KA-3570
KA-3570

Model

KA-3570

Specification:

  • Built-in fuse
  • 2.2M electrical cord

Description

  • Each car is equipped with electronic / computer device. When the battery needs to be replaced or temporarily stop, we need to re-set the system after repair. It makes the system be prone to problems such as “unable to ignite” or “abnormal running”. KA-3570 battery power supply would make the power supply interrupt.

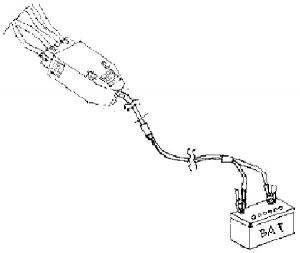

KA-3570(示意圖)
Procedure:
  1. Please remove the car keys before stop the battery power supply.
  2. Connect KA-3570 Uninterruptible Power Supply(OBD Ⅱ16pin) to OBD Ⅱplug. Observe if KA-3570 illuminate one light to ensure they are firmly connected.
  3. Connect the power supply with 12V power, and KA-3570 would illuminate two lights. If the RED light illuminates, the power supply is under 7.5V±0.5. Please do not change batter at the stage.
Warning: Please close all doors before changing the battery to avoid power consumed by car interior light.
