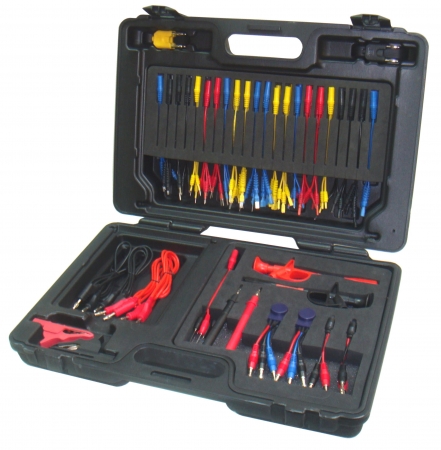

94pcs Multi-Purpose Connector

Universal Electrical Repair Tools
KA-3563A
KA-3563A

Model

KA-3563A

Description

  • Various male/ female connectors are designing and making for car factory demand. It’s a perfect circuit checking tool. You can use it nimble on the adjustment and assistant the technician checking the car problem rapidly and accurately.
Application Of Operation:
  1. When checking the parts, it could connect the back of terminal directly, would not to damage the circuit, reduce the circuit rust and avoid to adding impedance.
  2. Apply to any Automotive Multimeter, the extended line of probe for oscilloscope. More convenient connection and checking rapidly.
  3. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires.
  4. Variable Resister can simulate the pretend signal of coolant temperature sensor, throttle valve sensor and send the pretend signal to computer. It would avoid risk to change the new parts again.
  5. Equip 2 sets LED light. It can supervise hall effect, photoelectric signal, nozzle, electromagnetic valve, electromagnetic valve of transmission shift gear....and control signals.
  6. SRS Connector can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.
  7. Various wires in this box, it is suitable for the Europe, America and Japan terminal. High common use and convenience.

















Parts Function:
5KΩ potentiometer (variable resister)
Many parts in vehicle are applied to the variable resister (engine coolant temp. sensor, air charge temp. sensor, oil temp.). You can adjust the resister to meet your demand.
LED stroboscope
2-color and 2-way LED. The LED changes the color when shifting the positive (+) / Negative (-).
SRS Connector
While the SRS airbag or routed contracting device of seat belt is bad or after accident, it needs to set up a new SRS airbag. The SRS connector is used to replace the SRS airbag to connect with the system first.  The connector will be burned if the current is over 0.25A.
1 to 2 Connector
1 to 2 Male / Female connectors of banana sockets.
1 to 1 Male / Female Extension Wrie
1 to 1 Male / Female connectors of banana sockets.
Alligator clip
Clip the testing part, can be used together with the probe and extended line.
Testing Probe
Probe the testing part, can be used together with the alligator clip and extended line.
Acicular probe
To avoid the damage, please notice the operating angle.(Good strength with carbon steel)
Wire Checking Clip
By clipping the wire with this clip, the needle with in the clip will pierce through the wire, and so user can test the system without unplug the wire or clear all the insulator
Round terminals
1.5mm (Male / Female)+ Female banana socket (3pcs / each)
2.0mm (Male / Female)+ Female banana socket (3pcs / each)
3.5mm (Male / Female)+ Female banana socket (3pcs / each)
4.0mm (Male / Female)+ Female banana socket (3pcs / each)
Flat Terminals
0.8mm (Male / Female)+ Female banana socket (3pcs / each)
1.2mm (Male / Female)+ Female banana socket (4pcs / each)
2.0mm (Male / Female)+ Female banana socket (4pcs / each)
2.5mm (Male / Female)+ Female banana socket (3pcs / each)
3.0mm (Male / Female)+ Female banana socket (4pcs / each)
5.0mm (Male / Female)+ Female banana socket (3pcs / each)
6.0mm (Male / Female)+ Female banana socket (3pcs / each)
