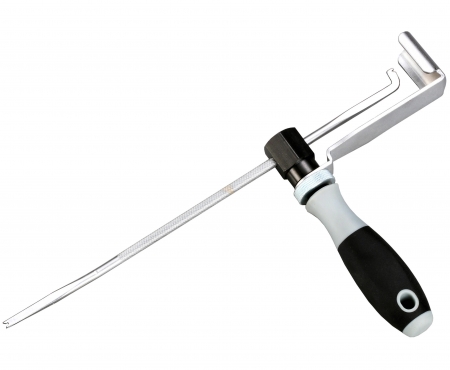

Brake Spring Tool
Description
|
|
Tool Assemble

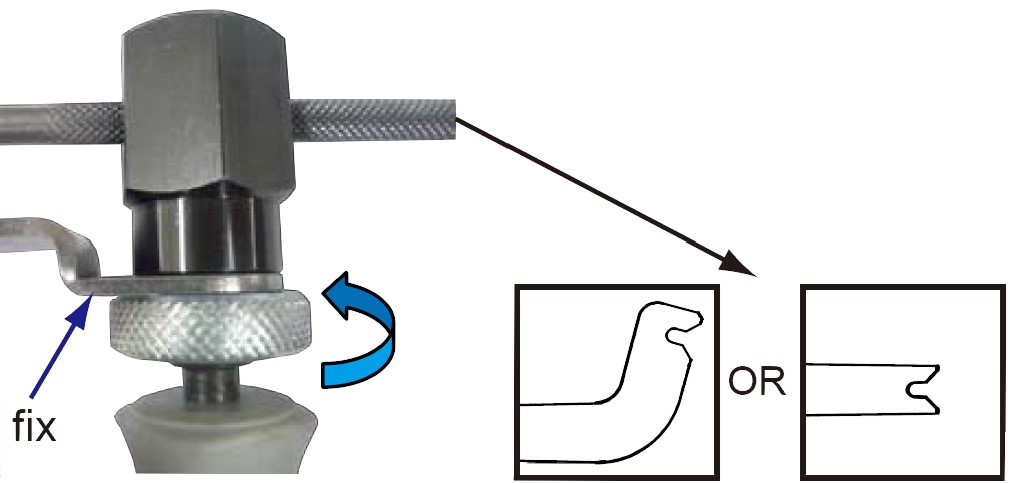

Step 1: Insert the steel bar through hex part and install it with the nut. Rotate the nut clockwise to fix the holder.
.jpg)

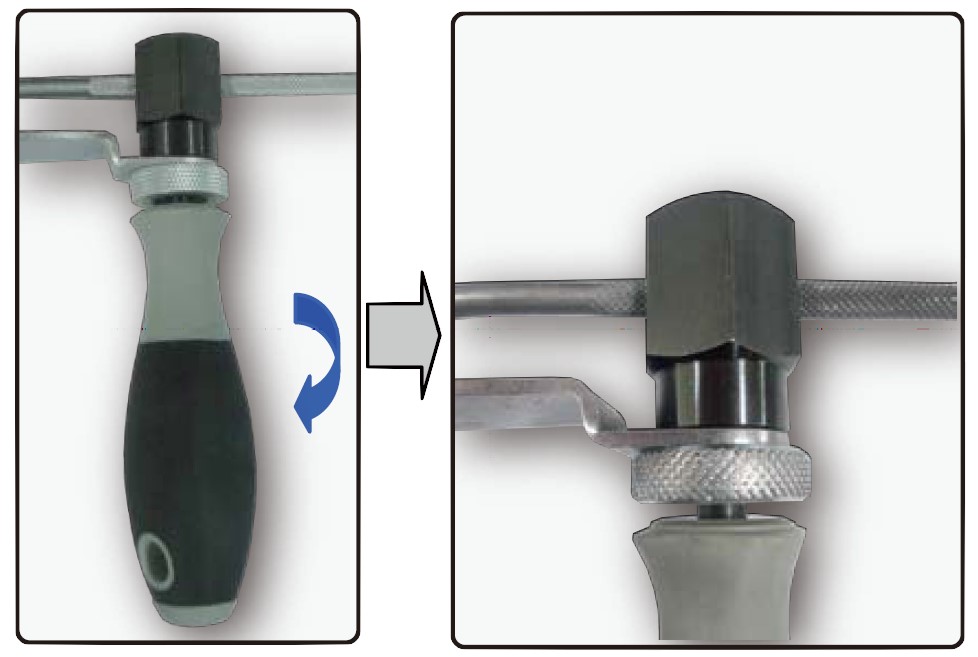

Step 2: Rotate the handle clockwise to fix the steel bar.
.jpg)
Operation

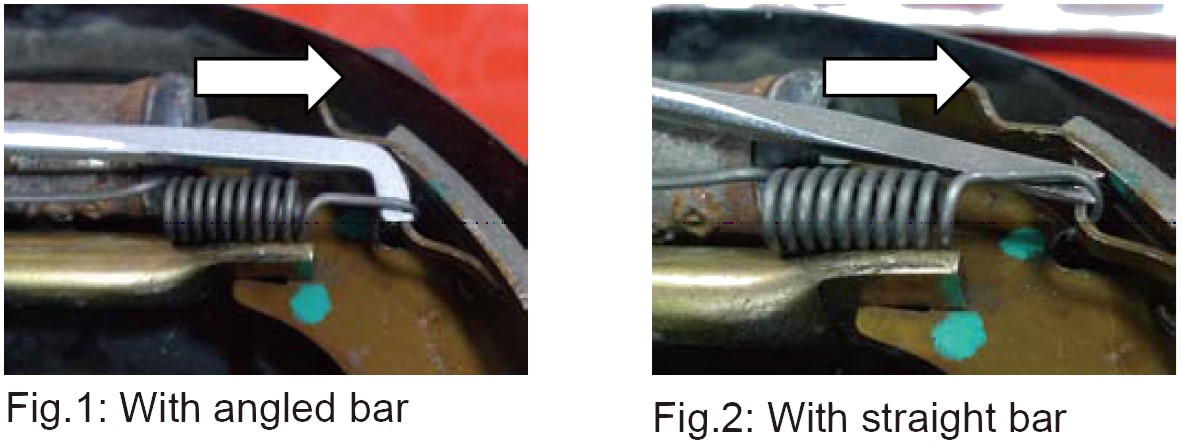

Removal:
Step 1: Hook the spring and fix it into the concave part.
Step 2: Hook tool handle and push the spring for removal.
.jpg)

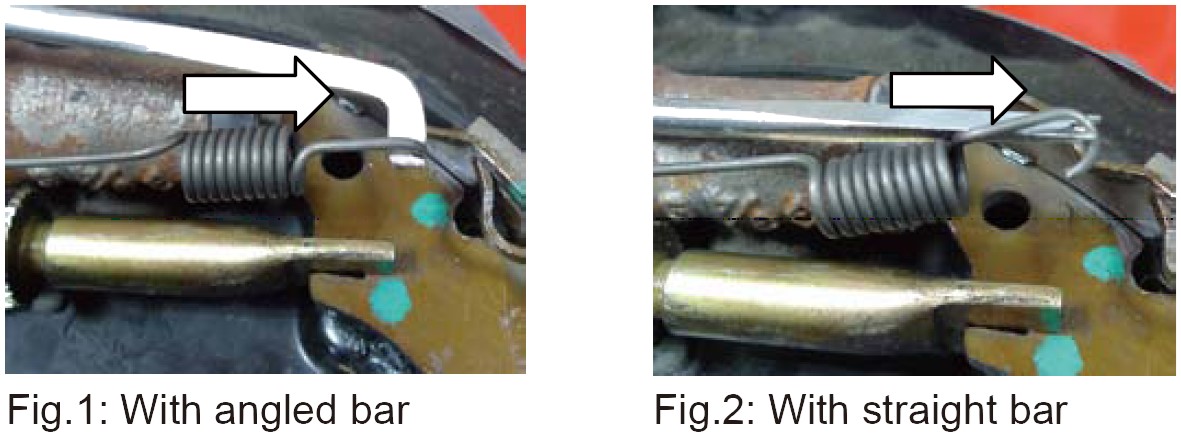

Installation:
Step 1: Hook the spring and fix it into the concave part.
Step 2: Hook tool handle and push the spring for installation.
.jpg)
