6.5L Pneumatic / Manual Operation Fluid Extractor

Brake Oil Service Tool
KA-7827P
KA-7827P

Model

PA-7827P

Specification:

  • Air Inlet 1/4"
  • Avg. Air cons 2CFM
  • Working pressure range 40-170Psi / 2.8-11.7Bar / 0.28-1.17Mpa

Description

  • Three air outlet with check valve design on handle for easy & quick to release air pressure from the extractor.
  • Easy to operate suitable for engine oil, gear oil, brake fluid, coolant, water...etc.
  • Provide with new decompression valve for easy to release the negative pressure.
  • Fixing valve & safety cup for automatic cut-off extracting.
  • Non-spark fluid extractor.
  • Include 3 kinds nylon tubes can be extracting and non-corrosive fluid.

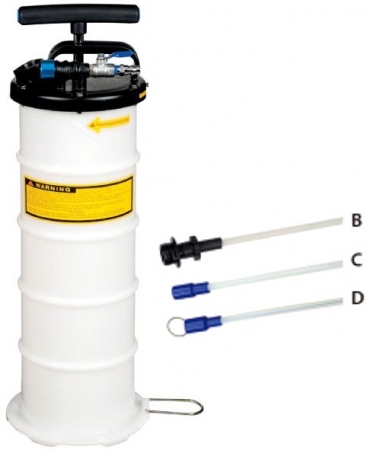

Standard Accessories:
B: 7.8 x 9.8 Nylon Hose
C: 5.3 x 6.7 Nylon Hose
D: 4 x 6 Nylon Hose
  • Vacuum, system,
  • Air Inlet control valve
  • Negative pressure quick exhaust valve.
  • Fluid draining pressure balancer.



Option parts:
"A" : 4 x 8 Silicon hose x 1.5 meter silicon hose with one touch controller & universal rubber adapter, can fits to most type brake fitting.
