Brake Fluid Tester (Flat Type)

KA-1033A
KA-1033A

Model

KA-1033A

Specification:

  • For DOT 4 Brake Fluid.
ADD INQUIRY

Description

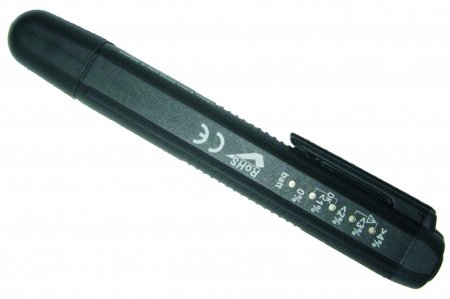

  • The tester can be used as a digital brake fluid tester suitable for determining brake fluid quality. Developed for professional use in automotive repair shops and in servicing.
  • Quality it tested and indicated on five LEDs in terms of “per cent of water in the brake fluid”.
KA-1033(示意圖)
Ready for Brake Fluid Test
Unscrew the brake fluid reservoir, and pull off the cap of the brake fluid tester.
Dip the test probes into the brake fluid up to the plastic rim of the device.
Battery(incl): one 1.5V, type AAA


To Check Fluid Quality
Press the button for power on, green LED will light up.
Insert the tester into reservoir for one second then the test result will be correctly indicated by LEDs.
The tester will automatically power off after 12 seconds of inactivity.

Product Labelling Indication
Geen: Battery OK, i.e: no water contained in the brake fluid.
Yellow: Less than 1% of water content in brake fluid.
Yellow/Yellow: Approx 2% of water content in brake fluid.
Yellow/Yellow/Red: Approx 3% of water content in brake fluid. The brake fluid should be changed.
Yellow/Yellow/Red/Red: At least 4% of water content in brake fluid. The brake fluid must be changed urgently!
