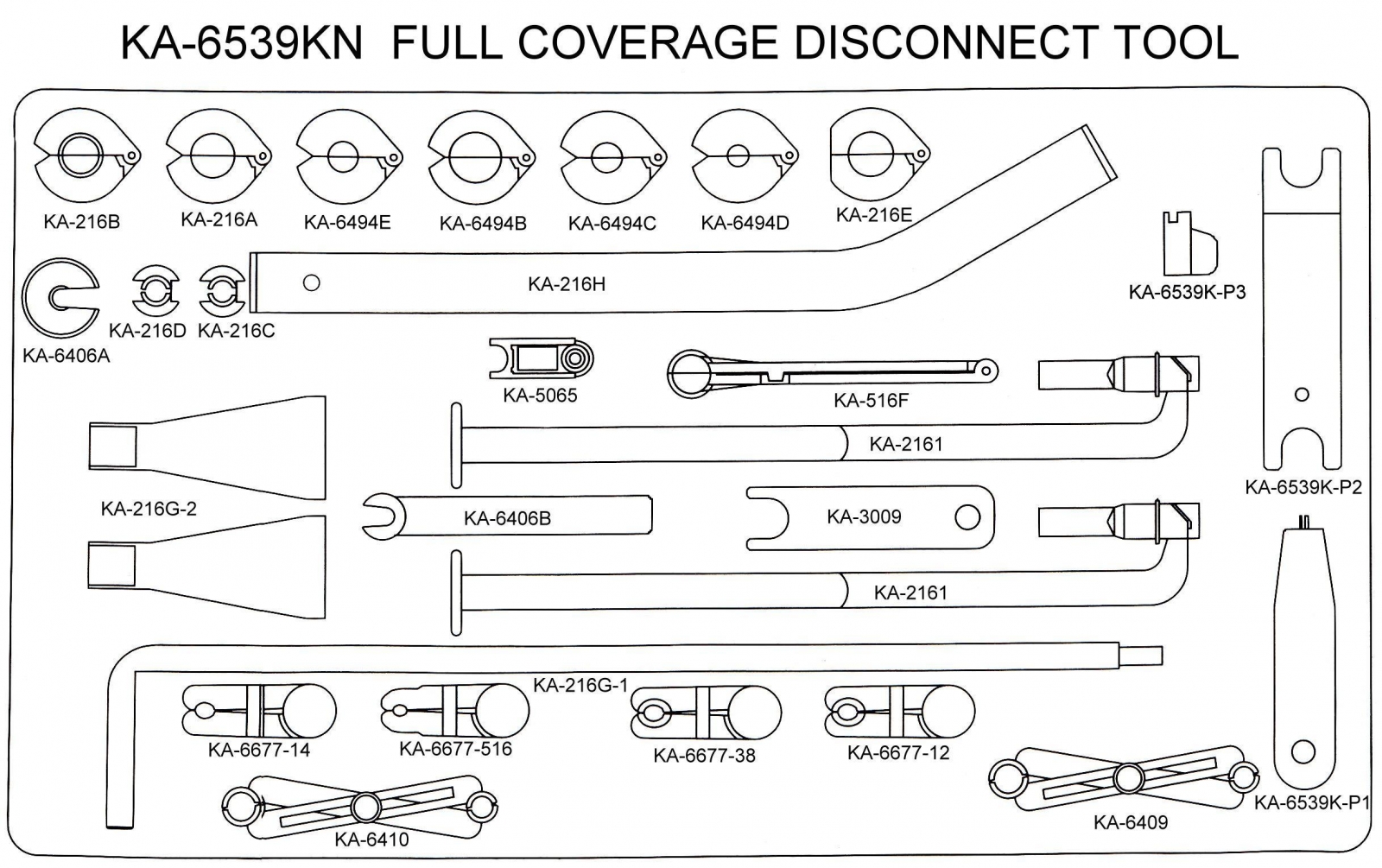

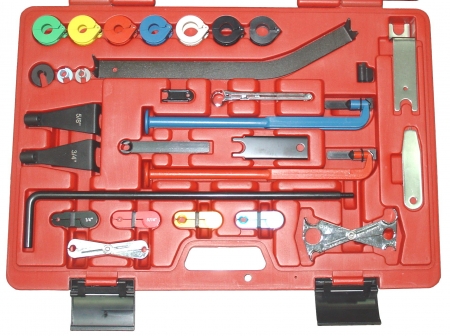

Full Coverage Disconnect Coupling Set

Universal A/C Tools
KA-6539KN
KA-6539KN

Model

KA-6539KN

Description

  • All the tools required for disconnecting heater hoses, transmission oil cooler pipes, air conditioning pipes and fuel lines used on todays later model vehicles.
1 KA-216B  Fuel Line Disconnect Tool- Green (1/2")
Releases spring lock connector on 1/2” fuel line. 1987 & newer Ford vehicles w/spring lock connectors
  2 KA-216A  Fuel Line Disconnect Tool- Yellow (3/8")
Releases spring lock connector on 3/8” fuel line. 1987 & newer Ford vehicles w/spring lock connectors.
3 KA-6494E  A/C Spring Locking Coupling Took- Red(3/8")
Releases spring lock connector on 3/8” air conditioning line. 1981 & newer Ford vehicles, some 1994 & newer Chrysler vehicles
  4 KA-6494B  A/C Spring Locking Coupling Tool- Blue (1/2”)
Releases spring lock connector on 1/2” air conditioning line. 1981 & newer Ford vehicles, some 1994 & newer Chrysler vehicles
5 KA-6494C  A/C Spring Locking Coupling Tool, Black(5/8”)
Releases spring lock connector on 5/8” air conditioning line.
  6 KA-6494D  A/C Spring Locking Coupling Tool- Beige(3/4”)
Releases spring lock connector on 3/4” air conditioning line.
1981 & newer Ford vehicles, some 1994 & newer Chrysler vehicles
7 KA-216E  Ford Heater Hose Disconnect Tool
Disconnects heater hose from engine. 1995 & newer Ford Drown Victoria & Mercury Grand Marquis w/4.6L engine
  8 KA-6406A  Ford/Gm Quick Disconnect Tool
Releases quick connect fittings used on fuel, transmission, and power steering lines. Ford CF1 fuel ones w/ hair pin connectors; universal for radiator to transmission oil cooler lines 1987 & newer olds. Torondado; Buick Riviers & Reatta; Cadillac Eldorado, Seville, & Conncours 1989 & newer GM 1/2 ton, 3/4  ton & 1 ton pickups
9 KA-216D  Fuel Line Disconnect Tool
Releases quick connect on 3/8” fuel line.
GM, Chrysler, & Ford vehicles w/ quick connect fuel lines.
  10 KA-216C Fuel Line Disconnect Tool
Releases quick connect on 5/16” fuel line.
GM, Chrysler, & Ford vehicles w/ quick connector lines.
11 KA-216H Chrysler Fuel Line Disconnect Tool
Releases quick connect fittings on fuel lines (pressure and retun) 1994 & newer Chrysler LH vehicles, other Chrysler vehicles with quick connect fuel lines
  12 KA-4337  GM Transmission Oil Cooler Line Disconnect Tool
Specially designed to work in tight places, and so simple to operate you can do it with just one hand. After inserting into the quick-connect fitting, a quarter turn of the tool quickly and easily releases the fitting on the transmission end of the transmission-to-radiator oil cooler line. Works on 2WD and 4WD pickups and vans with electronic shift overdrive automatic transmission.
13 KA-6539K-P2  GM Hydraulic Clutch Line Disconnect Tool
Damage-free way to reach and disconnect the clutch line from the slave cylinder during clutch master cylinder, slave cylinder, or clutch assembly service. Bentend works on NVG3500 manual transmissions on 1996 and newer full-size 2WD and 4WD trucks, S-10s, and  S-15 Blazers/Jimmys. The quick connect fit-ting on the slave cylinder is recessed in the bell housing on these vehicles. The straight end is for 1993 and newer Pontiac Grand Prix, Olds Cutlass Supremes, Buick Regals; 1993-94 Chevy Lumias; and 1995 and newer Chevrolet Monte Carlos.
  14 KA-6539K-P1  Toyota A/C Disconnect Tool
Used to release the plastic quick- connect fittings on the high and low pressure air conditioning lines at the evaporator.
Services 1998- newer Toyota Corolla, 1998- newer Geo Prism, 1998- 1/2- newer Toyota Land Cruiser and Lexus LX470, 1999- newer Toyota Avalon, Camry, Solara, and Sienna mini vans.
Easy to use: Plastic fitting on A/C line is rotated to show access to the two release holes in the fitting, tool is inserted into release holes and pushed to release the fitting.
15 KA-216G  Heater Hose Disconnect Tool -Chrysler & Ford
Use tool to remove heater hose from heater core tube without damaging coupling, retainer or hose. It fits Ford 1986 to current Aerostar vans with 5/8" to 3/4" heater hoses and quick disconnect couplings. Its extension handle allows for easy access to coupling.
  16 KA-5065  Ford Fuel Line Coupling Tool
The best way to get easy, frustration - and damage-free fuel line separation. The tool's fingers slip into the fuel line coupling, depressing the retaining collar as they go. The tool works on 1990 and newer Ford Rangers and Explores having 4.0L, 6-cylinder engines.
17 KA-216F  GM Heater Line Disconnect Tool
Disconnects heater line from engine block / thermostat housing. Fits 1991-current GM 3.1 liter, 3.4 liter and 3.8 liter (3800) engine.
  18 KA-216I Ford/Gm Fuel Line Disconnect Tool Set
Releases quick connect fittings on 5/16” and 3/8” fuel lines.
Releases fuel line on fuel tank. 1992 & new Chev. Lumina & Monte Carlo, Pont. Grand Prix. Olds. Cutlass Supreme, Buick Regal (all w/ ABS) 1988 & newer Ford pickups
19 KA-6406B  Transmission Cooler Line and Fuel Line Quick Disconnect Tool
Removes push lock connectors found at both the radiator and transmission. Used on 1983 through current Ford, and the 1982 Lincoln Continental overdrive transmissions. Tool slides down trans- mission cooler spread the plastic clip apart for easy removal.
  20 KA-3009  Hydraulic Clutch Line Disconnect Tool
For removing hydraulic clutch lines from clutch slave cylinders on some manual transmissions.
Applications: 1989 to current Mercury Cougars & Thunderbirds.
1988 to current small trucks including; Explorer, Ranger & Bronco II.
21 KA-6677-14  Disconnect Tools – Black(1/4”)
Separates fittings on fuel lines, fuel filters & fuel tank return lines
  22 KA-6677-516   Disconnect Tools – Red(5/16”)
Separates fittings on fuel lines, fuel filters & fuel tank return lines
23 KA-6677-38  Disconnect Tools – Yellow(3/8”)
Separates fittings on fuel lines, fuel filters & fuel tank return lines
  24 KA-6677-12  Oil Cooler Line Disconnect Tool- Blue(1/2”)
Separates automatic transmission oil cooler lines on Ford Taurus and Escort with AXOD and ATX transmissions
25 KA-6410  Fuel Line Quick Disconnect Tool
Tools service most type of quick-disconnect fittings used on Ford, GM & Chrysler vehicles. For easy fuel filter replacement 5/16” & 3/8”.
  26 KA-6409  Ford Fuel & A/C Line Spring Coupling Tool
Releases locking mechanism on all four sizes of spring lock couplings on most Fords. Four separate sizes referenced 3/8”, 1/2”, 5/8” & 3/4”.
