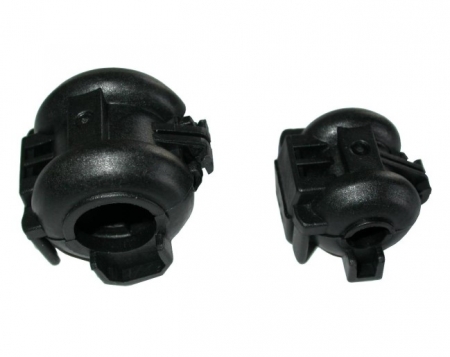

2pcs A/C Hose Clamping Tools

KA-5056BY
KA-5056BY

Model

KA-5056BY

Specification:

  • 3/8”(S) & 5/8”(M)
ADD INQUIRY

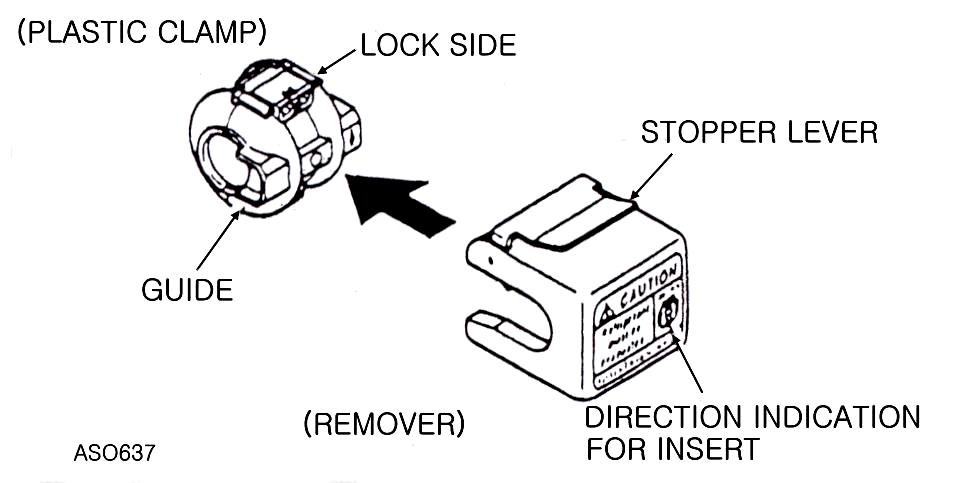

1. SETTING
Confirm the remover direction regarding to the direction indication.

2. REMOVER ATTACHMENT
Attach the remover to the plastic clamp.

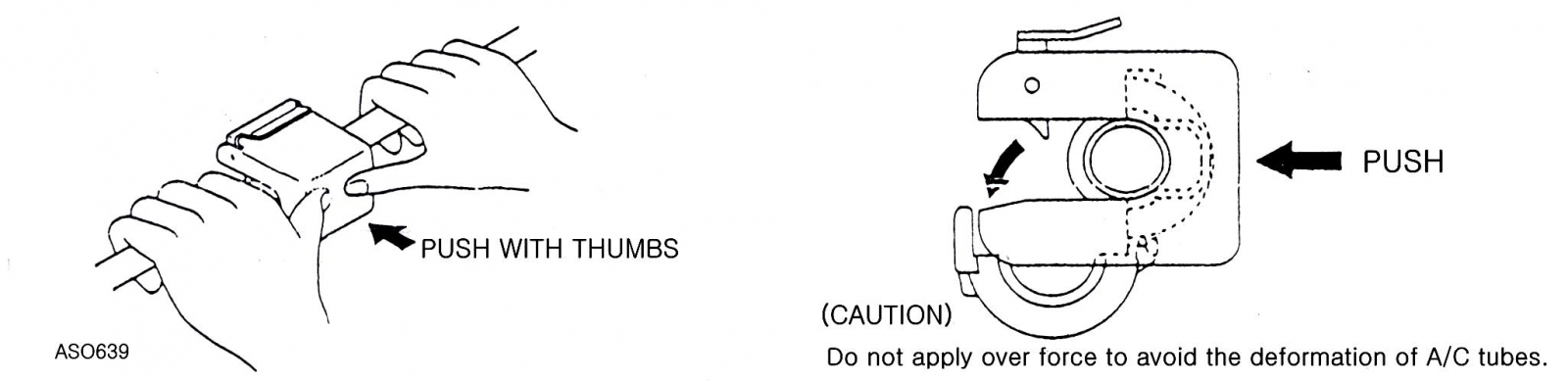

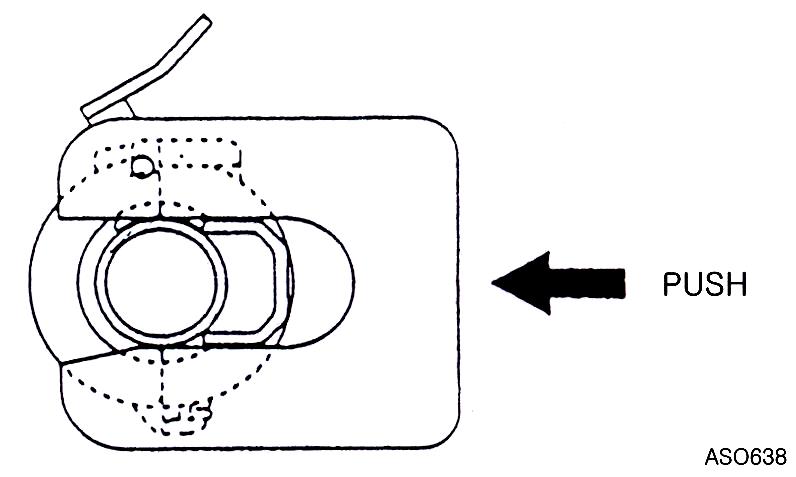

3. RELEASING CLAMP LOCK
Push the remover with thumbs then the clamp lock becomes released.

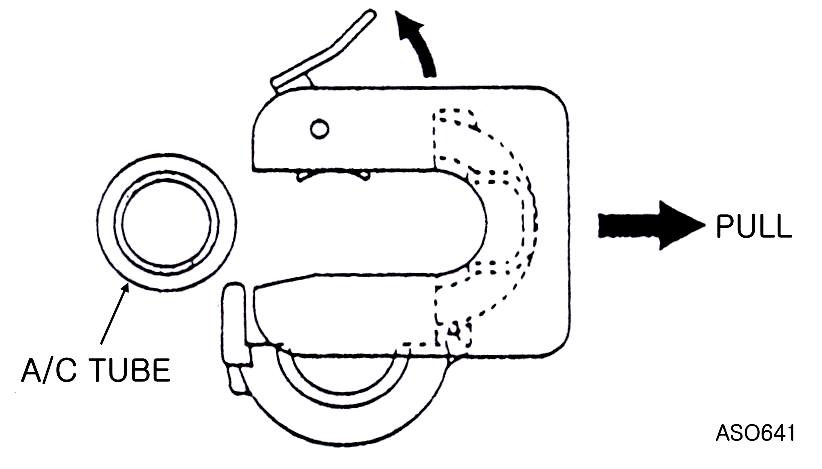

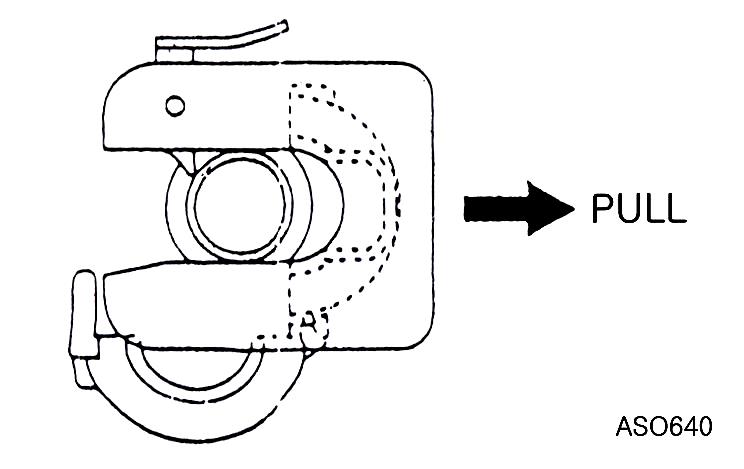

4. CLAMP SEPARATION
Pull the remover to separate the plastic clamp and tubes.

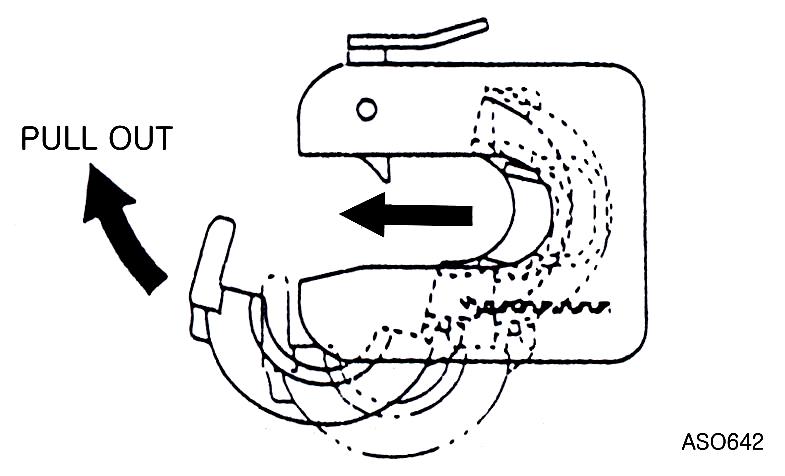

5. REMOVER PULL OUT
Operate the stopper lever and pull out the remover from A/C tubes.

6. CLAMP REMOVAL
Pull out the plastic clamp from the remover.


Cautions：
  • Refrigerant must be evacuated before using the remover.
  • Removing the plastic clamp filled with refrigerant may cause frostbite and eye blind.
  • Remover must be keep away from engine coolant and battery electrolyte.

Note：Do not bend the needles while removing the plastic clamp from remover.
Deformation of needles may cause the difficult operation for releasing the clamp lock.
