NIPPONDENSO Service Set

KA-7579K(1)
KA-7579K(1)

Model

KA-7579K

ADD INQUIRY

Description

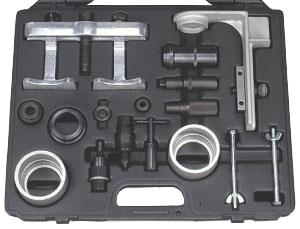

  • Contains all the specialized tools required to service Nippondenso type compressors appearing on many Ford, Chrysler and imported vehicles. Includes a special holding fixture for cross bolt mount configuration. Complete with blow case and instructions.

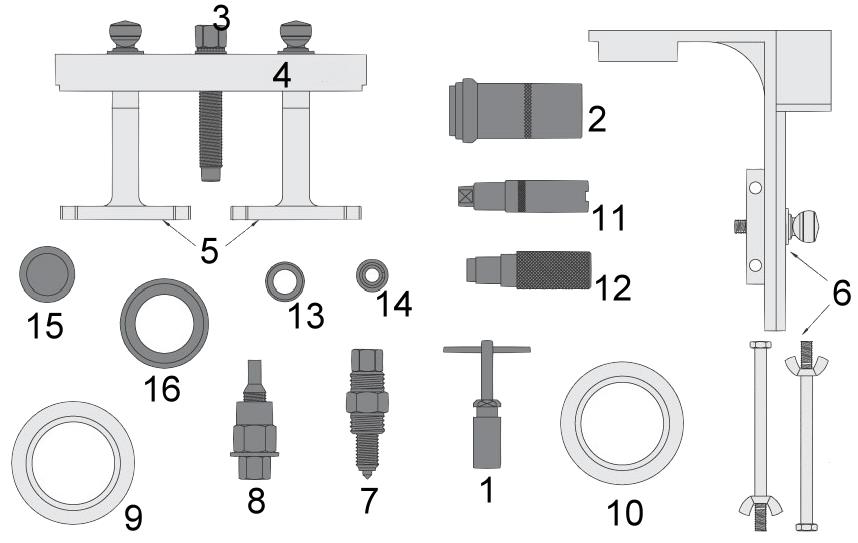

Contains:

 1. KA-0150  valve plate remover  9. KA-0152  clutch pulley support
 2. KA-0114  pulley bearing remover & driver 10. KA-0153  WARNER clutch pulley support
 3. KA-0102  universal pulley puller arbor 11. KA-0154  shaft key remover
 4. KA-0132  universal puller body 12. KA-0116  seal seat remover
 5. KA-0133  pulley removal jaws 13. KA-0115  seal seat installer
 6. KA-0151  compressor holding fixture 14. KA-0155  shaft key installer
 7. KA-0118  clutch plate remover 15. KA-0156  shaft protector pilot (small)
 8. KA-0119  clutch plate installer 16. KA-0110  bearing & pulley installer

  • For complete Ford FS-6 service:
this set must be used with:
KA-0136 external snap-ring pliers
KA-5010 universal clutch holding tool
  • For complete Ford 10PA17, service set KA-7579K must be used with KA-7482K
